The Trimesh object

ordito.Trimesh bundles a mesh's vertex and face buffers with lazily computed, cached properties, in the style of trimesh.Trimesh. Every property runs on the mesh's device, and each is computed once and reused until the mesh changes.

Quick start: build a mesh and read its properties

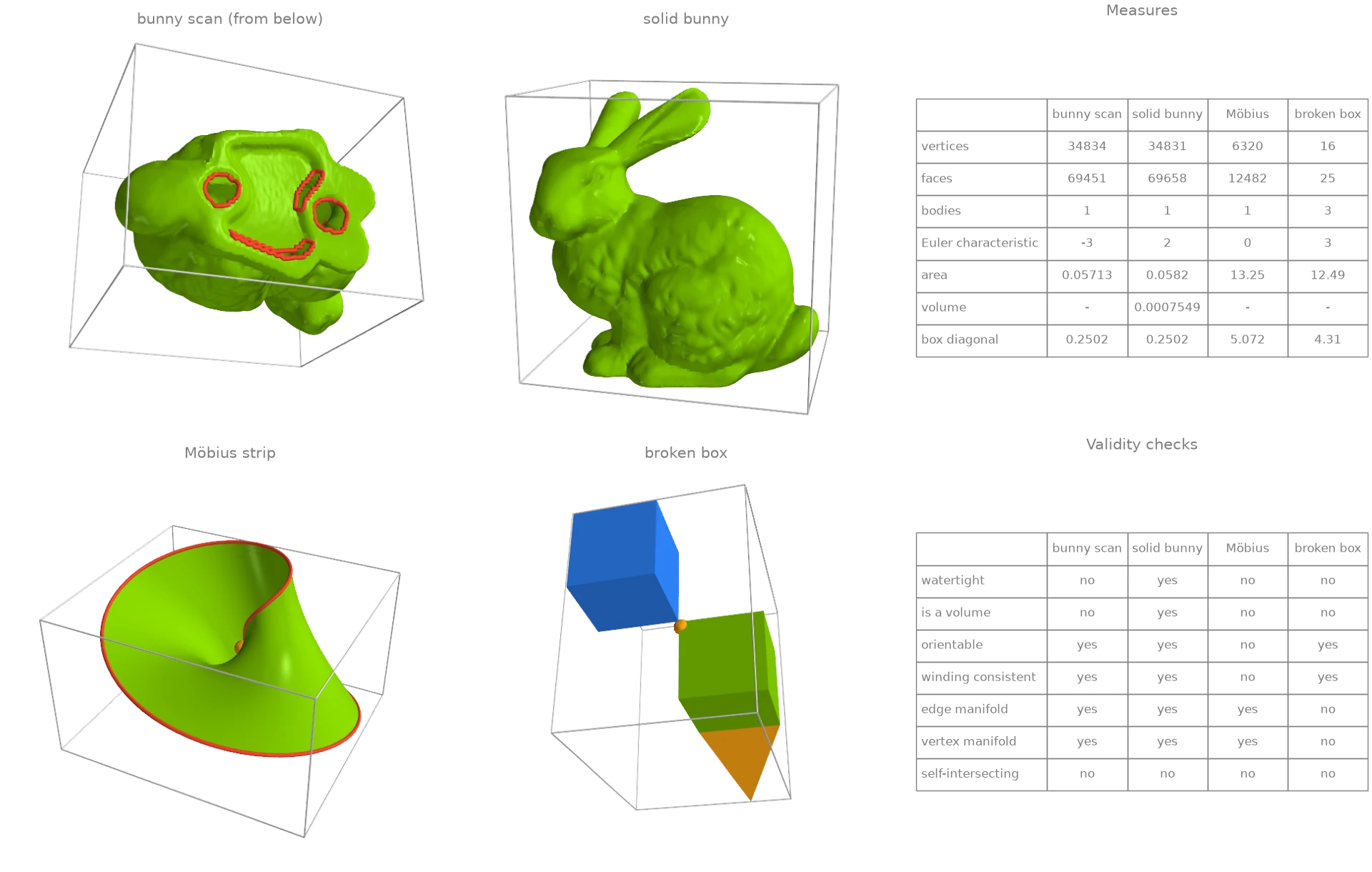

A Trimesh wraps a vertex buffer and a face buffer (or an existing warp.Mesh, through from_warp_mesh). Every property is computed on the mesh's device the first time it is read and cached after that. Four inputs with different defects are compared here: the bunny as scanned, with five holes in its base; the same bunny closed by make_solid; a Möbius strip; and two cubes that touch at one corner, with a fin glued to one edge. The validity checks tell them apart. Note that is_watertight follows Open3D's definition, so it also requires a manifold surface with no self-intersections.

import ordito as od
from examples import data

scan = od.Trimesh(*data.load("bunny", device))
meshes = {
    "bunny scan": scan,
    "solid bunny": od.Trimesh(*od.repair.make_solid(scan.vertices, scan.faces)),
    "Möbius strip": od.Trimesh(*data.load("mobius", device)),
    "broken box": od.Trimesh(*data.load("broken_box", device)),
}
for name, mesh in meshes.items():
    print(
        f"{name:>12}: {mesh.n_faces:6d} faces, {mesh.body_count} bodies, "
        f"Euler {mesh.euler_characteristic:2d}, {len(mesh.boundary_loops)} boundary loops, "
        f"watertight {mesh.is_watertight}"
    )

Output

  bunny scan:  69451 faces, 1 bodies, Euler -3, 5 boundary loops, watertight False
 solid bunny:  69658 faces, 1 bodies, Euler  2, 0 boundary loops, watertight True
Möbius strip:  12482 faces, 1 bodies, Euler  0, 1 boundary loops, watertight False
  broken box:     25 faces, 3 bodies, Euler  3, 0 boundary loops, watertight False

Volume is left blank for the three meshes that do not enclose a volume (is_volume is false): its integral is only meaningful on a closed, consistently wound surface. For the same reason the orange dot is the centre of mass of the solid bunny and the area-weighted surface centroid elsewhere. Bodies are counted across edges shared by exactly two faces, so the broken box's fin is a body of its own.

Modelled on: trimesh: quick start · Open3D: mesh properties · libigl 701 · PyMeshLab: measures

Bodies: split, explode and recombine

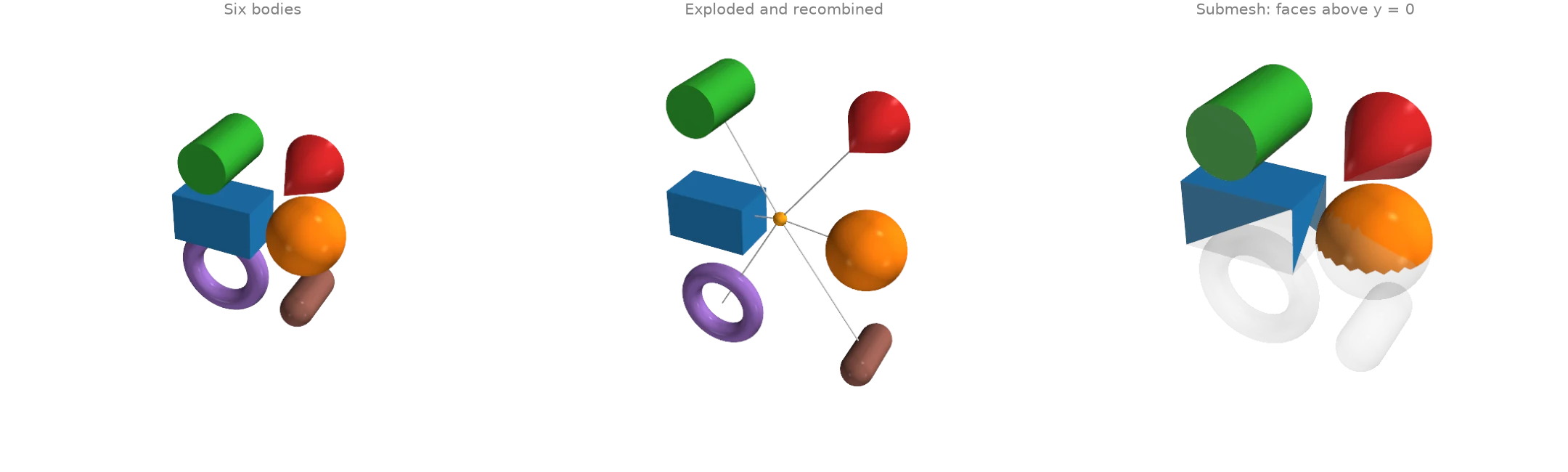

Six primitives packed into one buffer form six bodies. face_connected_component_labels names each face's body and body_count counts them. split turns them into one Trimesh each. Every body is then moved away from the assembly's centre of mass with transform, and + concatenates the moved bodies back into one mesh: an exploded view. submesh cuts out a selection of faces as a mesh of its own.

import functools
import operator

import numpy as np
import warp as wp

import ordito as od
from examples import data

mesh = od.Trimesh(*data.load("parts", device))
labels = mesh.face_connected_component_labels
print(f"{mesh.body_count} bodies, volume {mesh.volume:.3f}")

center = np.array(mesh.center_mass)
exploded = [
    body.transform(
        od.transform.translation_matrix((0.8 * (np.array(body.center_mass) - center)).tolist())
    )
    for body in mesh.split()
]
recombined = functools.reduce(operator.add, exploded)
print(f"recombined: {recombined.n_faces} faces in {recombined.body_count} bodies")

upper_half = mesh.submesh(
    wp.array(mesh.triangles_center.numpy()[:, 1] > 0.0, dtype=wp.bool, device=device)
)
print(f"upper half: {upper_half.n_faces} faces in {upper_half.body_count} bodies")

Output

6 bodies, volume 1.350
recombined: 5036 faces in 6 bodies
upper half: 918 faces in 4 bodies

Modelled on: trimesh: quick start · libigl 809 · Open3D: connected components

Rigid and mirror transforms

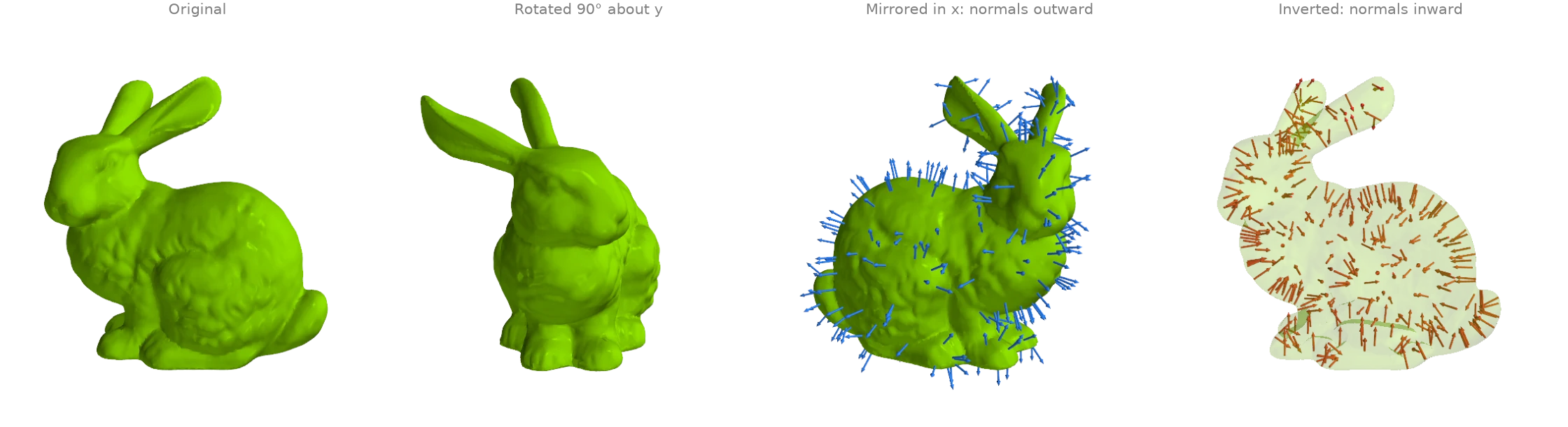

transform returns a new mesh under a 4 x 4 matrix built by rotation_matrix or reflection_matrix. It classifies the matrix first and carries every cached value the transform preserves: after a rotation the cotangent Laplacian cotmatrix is the same object, not a new assembly. A mirror also reverses the winding of every face, so the mirrored bunny keeps outward normals and a positive volume. invert reverses the winding without moving anything, which turns the solid inside out.

import math

import ordito as od
from examples import data

mesh = od.Trimesh(*od.repair.make_solid(*data.load("bunny", device)))
laplacian = mesh.cotmatrix  # assembled once here

spun = mesh.transform(od.transform.rotation_matrix((0.0, 1.0, 0.0), math.pi / 2, mesh.centroid))
mirrored = mesh.transform(od.transform.reflection_matrix((1.0, 0.0, 0.0), mesh.centroid))
inverted = mesh.invert()

print(f"cotmatrix carried through the rotation: {spun.cotmatrix is laplacian}")
for name, m in [("original", mesh), ("rotated", spun), ("mirrored", mirrored)]:
    print(f"{name:>9}: volume {m.volume:.3e}")
print(f" inverted: volume {inverted.volume:.3e}")

Output

cotmatrix carried through the rotation: True
 original: volume 7.549e-04
  rotated: volume 7.549e-04
 mirrored: volume 7.549e-04
 inverted: volume -7.549e-04

Modelled on: trimesh: quick start · Open3D: transformation

Inside tests and surface samples

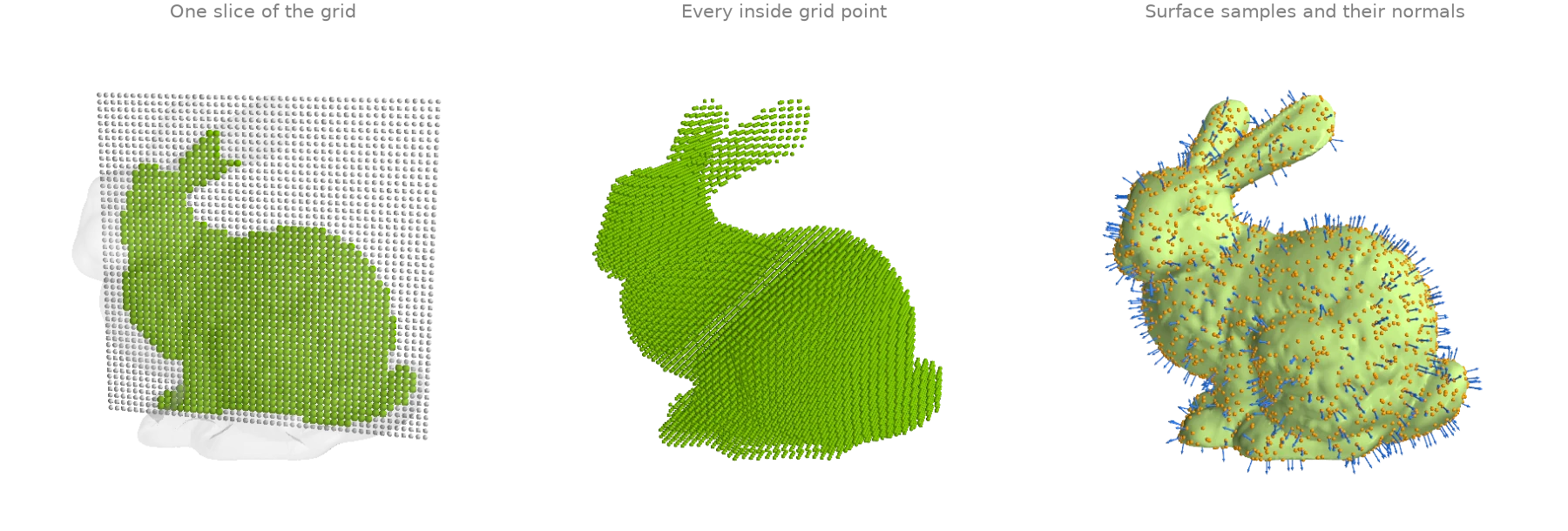

contains classifies query points as inside or outside by ray parity against the mesh's cached BVH, so it needs a closed surface: the bunny is first closed by make_solid. sample draws area-uniform points on the surface and returns the face each point landed on, which indexes face_normals.

import numpy as np
import warp as wp

import ordito as od
from examples import data

mesh = od.Trimesh(*od.repair.make_solid(*data.load("bunny", device)))
lower, upper = mesh.bounds
axes = [np.linspace(low, high, 48) for low, high in zip(lower, upper, strict=True)]
grid = np.stack(np.meshgrid(*axes, indexing="ij"), axis=-1).reshape(-1, 3)
inside = mesh.contains(wp.array(grid, dtype=wp.vec3, device=device)).numpy()
print(f"{inside.sum()} of {grid.shape[0]} grid points are inside")

points, face_index = mesh.sample(3000, seed=0)
normals = mesh.face_normals.numpy()[face_index.numpy()]
print(f"{points.shape[0]} samples on a surface of area {mesh.area:.4f}")

Output

27005 of 110592 grid points are inside
3000 samples on a surface of area 0.0582

Modelled on: trimesh: quick start · Open3D: mesh sampling

Edge structure: dihedral angles, convexity and boundaries

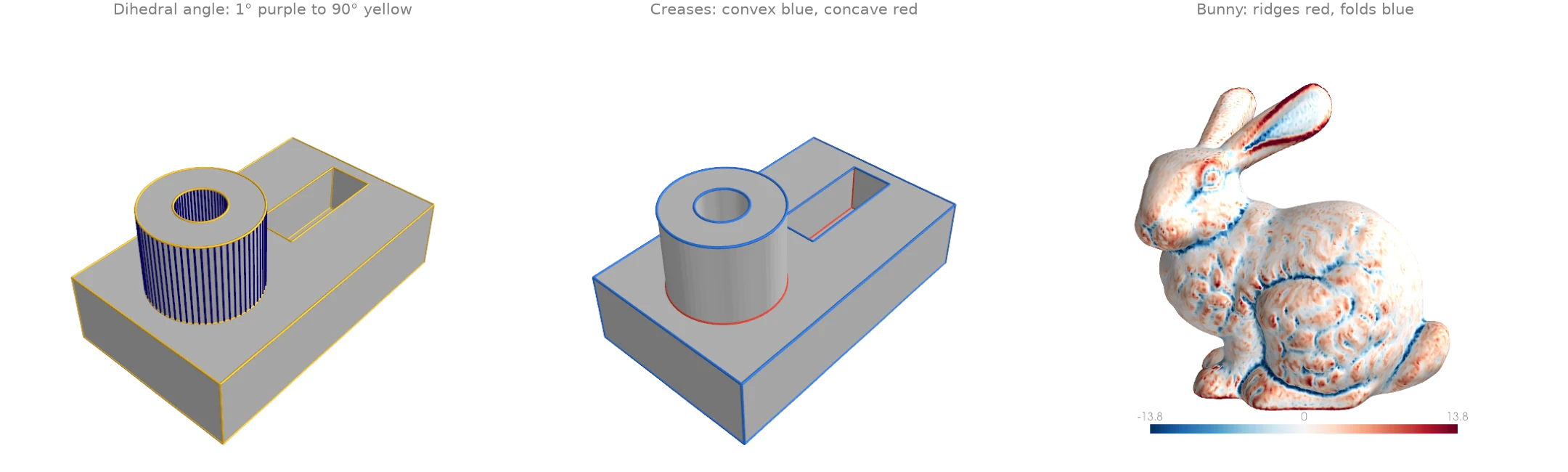

Every pair of faces sharing an edge is a row of face_adjacency, with the shared vertex pair in face_adjacency_edges. The angle between the two face normals is face_adjacency_angles, and face_adjacency_convex says whether the edge folds outward (a ridge) or inward (a valley). Thresholding the angle picks out the creases of a machined part. On the scanned bunny, the signed angle averaged around each vertex separates ridges from folds. boundary_edges counts the edges on the rims of the holes in the bunny's base.

import numpy as np

import ordito as od
from examples import data

out = {}
for name, threshold in [("cad_part", 30.0), ("bunny", 40.0)]:
    mesh = od.Trimesh(*data.load(name, device))
    angles = np.degrees(mesh.face_adjacency_angles.numpy())
    convex = mesh.face_adjacency_convex.numpy()
    sharp = angles > threshold
    print(
        f"{name}: {mesh.edges_unique.shape[0]} edges, {sharp.sum()} sharper than "
        f"{threshold:.0f}° ({(sharp & convex).sum()} convex, "
        f"{(sharp & ~convex).sum()} concave), {mesh.boundary_edges.shape[0]} on the boundary"
    )
    out[name] = (mesh.face_adjacency_edges.numpy(), angles, convex, sharp)

Output

cad_part: 720 edges, 248 sharper than 30° (176 convex, 72 concave), 0 on the boundary
bunny: 104288 edges, 550 sharper than 40° (331 convex, 219 concave), 223 on the boundary

Modelled on: trimesh: quick start · trimesh: examples

Caching and functional updates

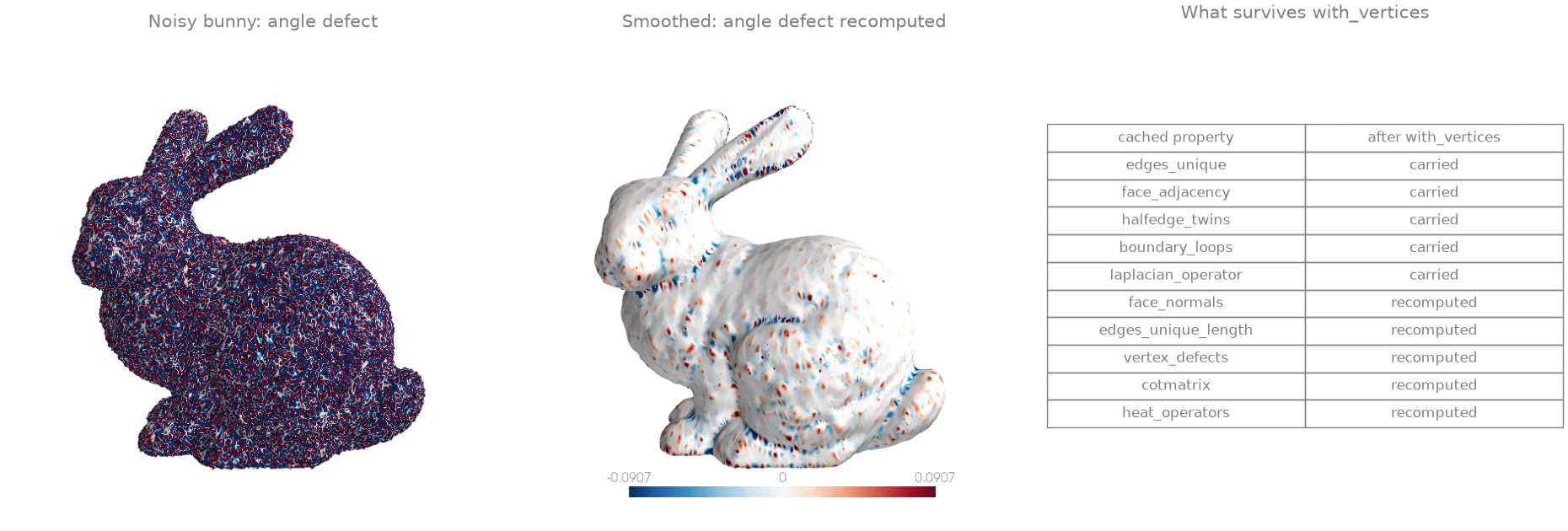

A Trimesh is frozen: an update returns a new mesh and decides which cached values are still valid. with_vertices keeps the faces, so it carries forward every cache that is computed from the faces alone. These are the edge tables, face adjacency, half-edges, boundaries, manifold and orientation checks, body count and the uniform laplacian_operator. Anything that reads positions is recomputed on first access: normals, areas, angles, edge lengths, vertex_defects, the BVH, the cotangent operators and the heat bundles. Here the noisy bunny is smoothed with filter_taubin, reusing the cached uniform Laplacian, and the angle defect (discrete Gaussian curvature) is read again on the smoothed mesh.

import ordito as od
from examples import data

mesh = od.Trimesh(*data.load("noisy_bunny", device))
names = [
    "edges_unique",
    "face_adjacency",
    "halfedge_twins",
    "boundary_loops",
    "laplacian_operator",
    "face_normals",
    "edges_unique_length",
    "vertex_defects",
    "cotmatrix",
    "heat_operators",
]
before = {name: getattr(mesh, name) for name in names}  # compute and cache

smoothed_vertices = od.smoothing.filter_taubin(
    mesh.vertices, mesh.faces, iterations=20, laplacian_operator=mesh.laplacian_operator
)
smoothed = mesh.with_vertices(smoothed_vertices)
kept = [name for name in names if getattr(smoothed, name) is before[name]]
print("carried forward:", ", ".join(kept))
print("recomputed:     ", ", ".join(name for name in names if name not in kept))
print(f"mean edge length {mesh.mean_edge_length:.6f} -> {smoothed.mean_edge_length:.6f}")

Output

carried forward: edges_unique, face_adjacency, halfedge_twins, boundary_loops, laplacian_operator
recomputed:      face_normals, edges_unique_length, vertex_defects, cotmatrix, heat_operators
mean edge length 0.001593 -> 0.001443

with_faces carries nothing, since every cached value depends on the faces. copy makes independent buffers, and invalidate clears the cache after a buffer has been edited in place by a kernel.

Modelled on: trimesh: caching

Reusing cached operators

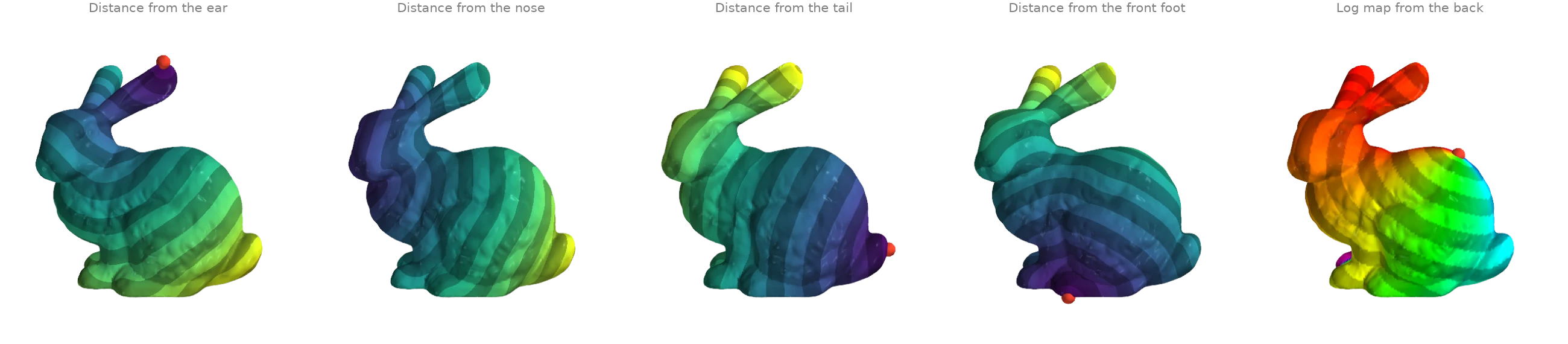

The discrete operators of a mesh depend on the mesh alone, so a Trimesh assembles each of them once and hands the same object to every solve. Here heat_operators serves four heat_geodesic calls from four different sources, and the mesh's heat_solver keeps the factorizations built on the second, so the last two run no iteration. vector_heat_operators holds that same scalar bundle and the vertex_tangent_frames, and feeds log_map: every vertex's position in the tangent plane of a source vertex, drawn with hue for its direction and stripes for its distance. The cotangent matrix cotmatrix and lumped mass mass_matrix_entries are cached the same way, for callers that assemble their own systems.

import warp as wp

import ordito as od
from examples import data

mesh = od.Trimesh(*data.load("bunny", device))
operators = mesh.heat_operators  # assembled here, once

distances = {}
for name, vertex in {"ear": 22820, "nose": 11842, "tail": 12217, "front foot": 34264}.items():
    source = wp.array([vertex], dtype=wp.int32, device=device)
    distances[name] = od.heat.heat_geodesic(mesh, source).numpy()
    print(f"from the {name:<10}: farthest point at {distances[name].max():.4f}")

vector_operators = mesh.vector_heat_operators
print("vector bundle reuses the scalar one:", vector_operators[1] is operators)
log = od.heat.log_map(mesh, 16308)

Output

from the ear       : farthest point at 0.2396
from the nose      : farthest point at 0.2115
from the tail      : farthest point at 0.2409
from the front foot: farthest point at 0.2201
vector bundle reuses the scalar one: True

Modelled on: potpourri3d · libigl 716
