Geodesics and tangent fields

Heat-method distances, geodesic paths and tracing, vector transport and the log map.

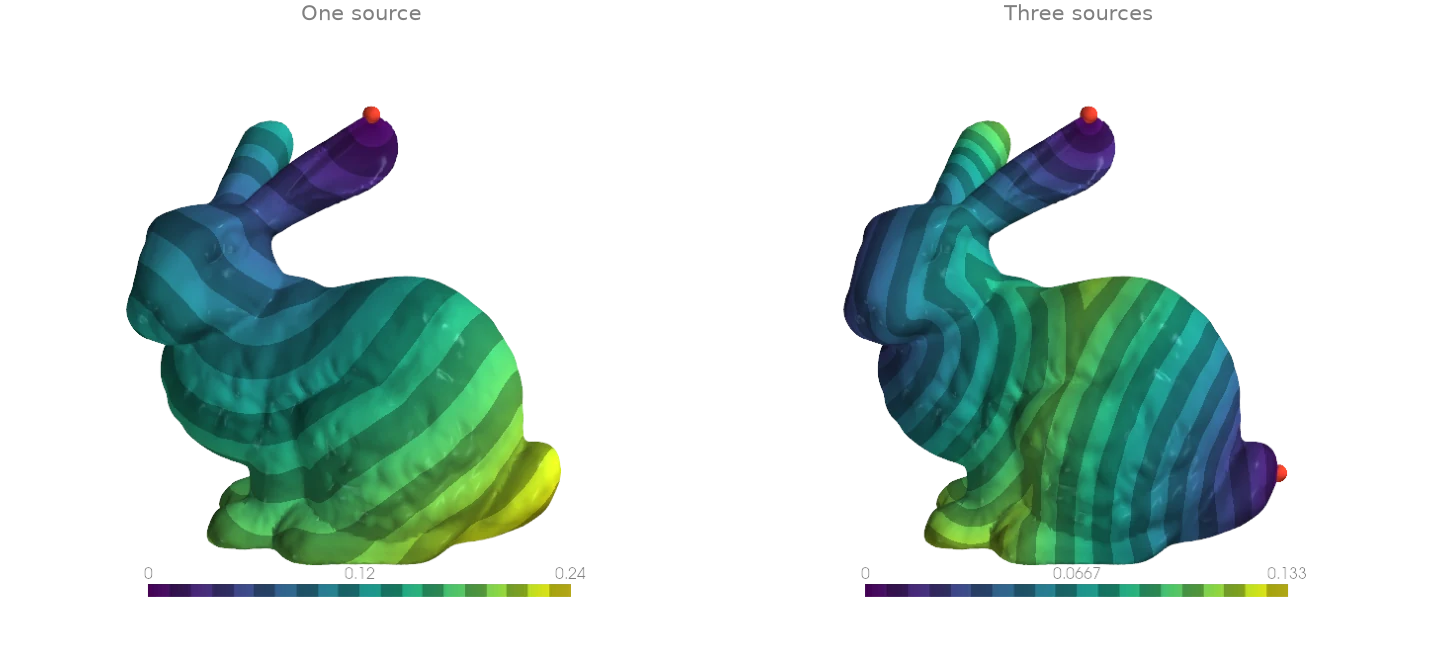

Geodesic distance with the heat method

heat_geodesic approximates the distance along the surface to the nearest source vertex. It diffuses heat from the sources for a short time, normalizes the gradient of the result into a unit field, and integrates that field back into a distance. Given a Trimesh, the two sparse operators this needs are built once and kept on the mesh -- with their factorizations, built on the second call -- so the second set of sources here reuses them.

import warp as wp

import ordito as od
from examples import data

mesh = od.Trimesh(*data.load("bunny", device))

ear = wp.array([22820], dtype=wp.int32, device=device)
landmarks = wp.array([22820, 11842, 12217], dtype=wp.int32, device=device)  # ear, nose, tail
from_ear = od.heat.heat_geodesic(mesh, ear)
from_landmarks = od.heat.heat_geodesic(mesh, landmarks)  # the mesh's operators, factored
print(f"farthest point from the ear: {from_ear.numpy().max():.4f}")

Output

farthest point from the ear: 0.2396

Accuracy. The heat method is an approximation whose error depends on the mesh resolution and on the diffusion time t; the default is the squared mean edge length, the value its authors recommend, and the one libigl and potpourri3d use. On the unit icosphere with 2 562 vertices, where the exact distance is the angle arccos(p · q), the mean error is about 0.01 and the worst about 0.03. In exchange it costs two sparse solves rather than a shortest-path search per source.

Many source sets on one mesh. The operators and their factorizations depend on the mesh alone, so a loop over source sets (one per frame, one per candidate) should pass the same Trimesh: every call after the second costs a few triangular solves. The factorizations hold device memory while the mesh lives; release_factorizations returns it.

Modelled on: libigl 716 · potpourri3d · PyMeshLab

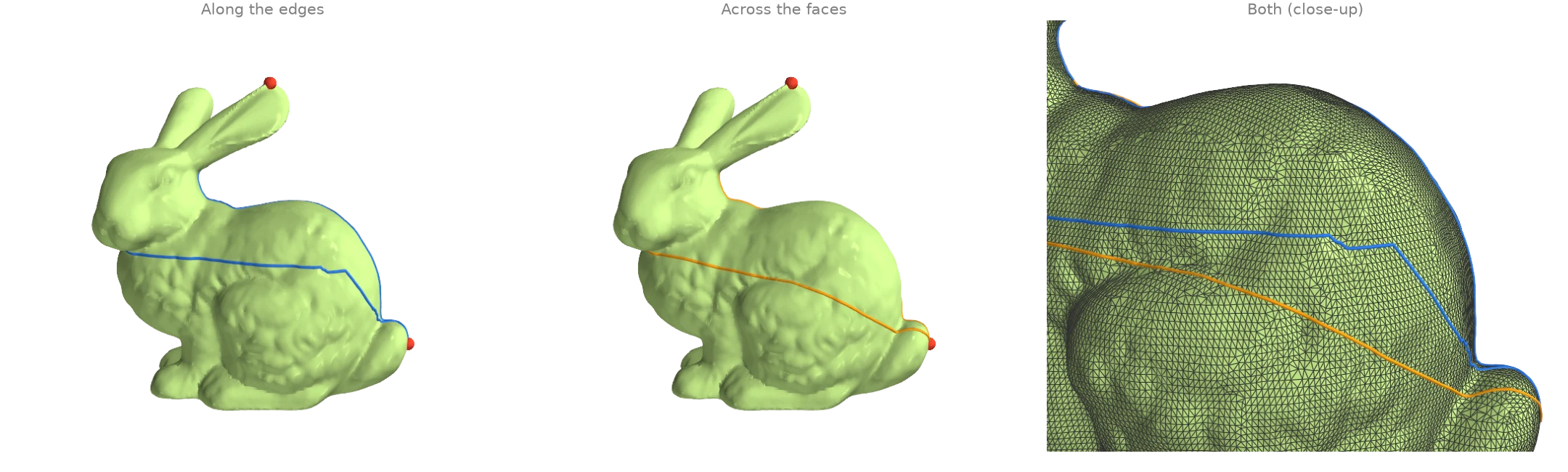

Shortest paths: along the edges and across the faces

Two answers to "how do I get from the ear to the tail". The edge graph's shortest path comes from shortest_path_envelope (Dijkstra's distances, computed by parallel relaxation over the edges_to_csr adjacency) followed by a short backtrack; it zigzags because it may only follow edges. geodesic_path instead descends one heat-method distance field from every target, so its paths cut straight across faces and are shorter.

import numpy as np
import warp as wp

import ordito as od
from examples import data

vertices, faces = data.load("bunny", device)
tail, targets = 12217, [22820, 11842]  # from the ear tip and the chin to the tail

# Across the faces: descend the heat distance to the tail from every target.
source = wp.array([tail], dtype=wp.int32, device=device)
points, offsets = od.geodesic_walk.geodesic_path(
    vertices, faces, source, wp.array(targets, dtype=wp.int32, device=device)
)
geodesics = od.array.split(points, offsets)

# Along the edges: Dijkstra distances to the tail, then step to the closest neighbour.
n = vertices.shape[0]
edges = od.edges.edges_unique(faces, n_vertices=n, validate=False)[0]
graph = od.graph.edges_to_csr(n, edges, od.edges.edges_unique_length(vertices, faces, edges))
seed = np.full(n, 1e6, dtype=np.float32)
seed[tail] = 0.0
dist = od.graph.shortest_path_envelope(graph, wp.array(seed, device=device)).numpy()
rows, cols, weights = graph.offsets.numpy(), graph.columns.numpy(), graph.values.numpy()
edge_paths = []
for v in targets:
    path = [v]
    while v != tail:
        ring = slice(rows[v], rows[v + 1])
        v = cols[ring][np.argmin(dist[cols[ring]] + weights[ring])]
        path.append(v)
    edge_paths.append(np.array(path))

for name, geodesic, path in zip(["ear", "chin"], geodesics, edge_paths, strict=True):
    along_edges = np.linalg.norm(np.diff(vertices.numpy()[path], axis=0), axis=1).sum()
    print(
        f"{name} -> tail: {along_edges:.4f} along edges, "
        f"{od.polyline.polyline_length(geodesic):.4f} across faces"
    )

Output

ear -> tail: 0.2362 along edges, 0.2251 across faces
chin -> tail: 0.2137 along edges, 0.2018 across faces

Modelled on: potpourri3d: geodesic paths · libigl 206 · PyVista: geodesic · trimesh: shortest path

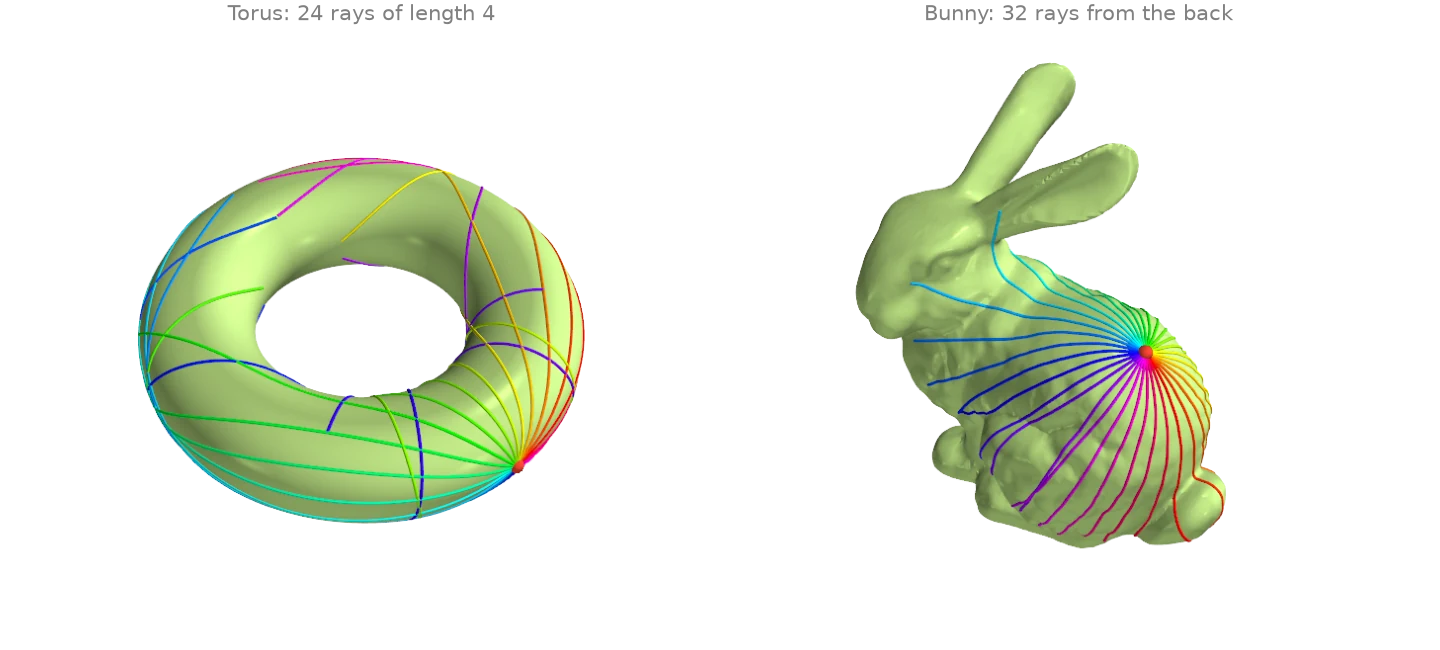

Tracing straightest geodesics (the exponential map)

trace_from_vertex walks a batch of rays across the surface, each starting at a vertex in a tangent direction and going straight ahead through every face it enters, for an arc length equal to the direction's length. A fan of equal-length rays in every direction is the image of a disk under the exponential map: on the torus the rays along the outer equator stay together while those climbing over the tube spread and wind around it. The tangent directions are built in each vertex's frame from vertex_tangent_frames.

import numpy as np
import warp as wp

import ordito as od
from examples import data

def fan(name: str, start: int, length: float, n_rays: int = 32):
    vertices, faces = data.load(name, device)
    basis_x, basis_y, _ = od.tangent_space.vertex_tangent_frames(vertices, faces)
    angle = (np.arange(n_rays)[:, None] + 0.5) * (2.0 * np.pi / n_rays)
    directions = length * (
        np.cos(angle) * basis_x.numpy()[start] + np.sin(angle) * basis_y.numpy()[start]
    )
    points, offsets = od.geodesic_walk.trace_from_vertex(
        vertices,
        faces,
        wp.full(n_rays, start, dtype=wp.int32, device=device),
        wp.array(directions, dtype=wp.vec3, device=device),
    )
    return od.array.split(points, offsets)

torus_rays = fan("torus", start=0, length=4.0, n_rays=24)  # a vertex on the outer equator
bunny_rays = fan("bunny", start=16151, length=0.1)  # a vertex on the back
lengths = [od.polyline.polyline_length(ray) for ray in torus_rays]
print(f"torus ray lengths: {min(lengths):.3f} to {max(lengths):.3f}")
print(f"edge crossings per torus ray: up to {max(len(ray) for ray in torus_rays) - 2}")

Output

torus ray lengths: 4.000 to 4.000
edge crossings per torus ray: up to 247

A ray that runs exactly into a vertex stops there (the walk has no rule for which face to continue into). On the torus's regular grid that happens to rays leaving along an edge, so the fan starts half a step off the frame's axes.

Modelled on: potpourri3d: geodesic tracer

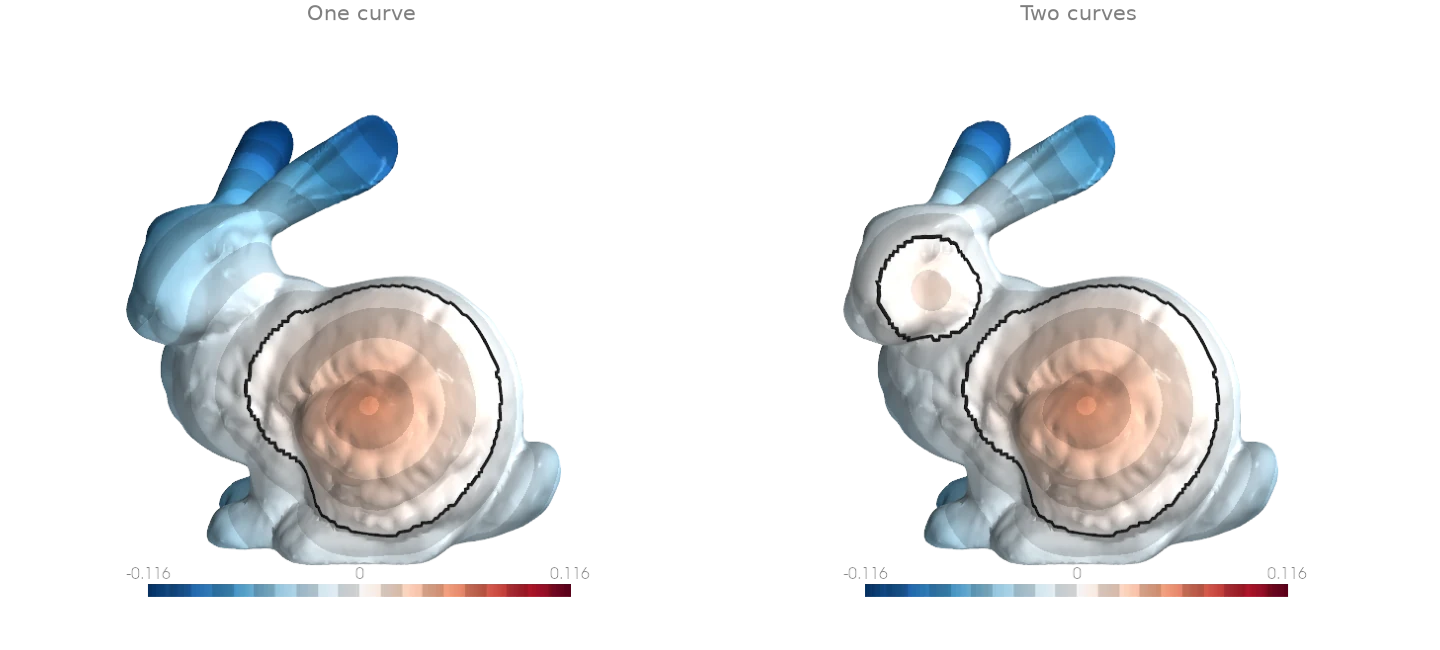

Signed distance to curves on the surface

heat_signed_distance measures the distance along the surface to a set of closed, oriented curves, positive on one side and negative on the other. It diffuses the curves' normals with the vector heat method and integrates the normalized result, so it needs no inside/outside test and handles several curves at once. The curves here are the rims of geodesic disks: heat_geodesic gives the distance to a centre and boundary_loops of the faces within a radius orders the rim.

import numpy as np
import warp as wp

import ordito as od
from examples import data

vertices, faces = data.load("bunny", device)
triangles = faces.numpy().reshape(-1, 3)

def rim(center: int, radius: float) -> np.ndarray:
    """Return the boundary loop of the geodesic disk of ``radius`` around ``center``."""
    source = wp.array([center], dtype=wp.int32, device=device)
    distance = od.heat.heat_geodesic(vertices, faces, source).numpy()
    disk = triangles[(distance[triangles] < radius).all(axis=1)].ravel()
    loops = od.boundary.boundary_loops(vertices, wp.array(disk, device=device))
    return max(loops, key=lambda loop: loop.shape[0]).numpy()

body, cheek = rim(5088, 0.05), rim(6710, 0.02)
one = od.heat.heat_signed_distance(vertices, faces, wp.array(body, device=device))
both = od.heat.heat_signed_distance(
    vertices,
    faces,
    wp.array(np.concatenate([body, cheek]), device=device),
    curve_offsets=wp.array(
        [0, body.size, body.size + cheek.size], dtype=wp.int32, device=device
    ),
)
print(f"one curve: {one.numpy().min():.4f} to {one.numpy().max():.4f}")
print(f"value on the curve: |d| <= {np.abs(one.numpy()[body]).max():.1e}")

Output

one curve: -0.1247 to 0.0492
value on the curve: |d| <= 0.0e+00

Modelled on: potpourri3d: signed heat method

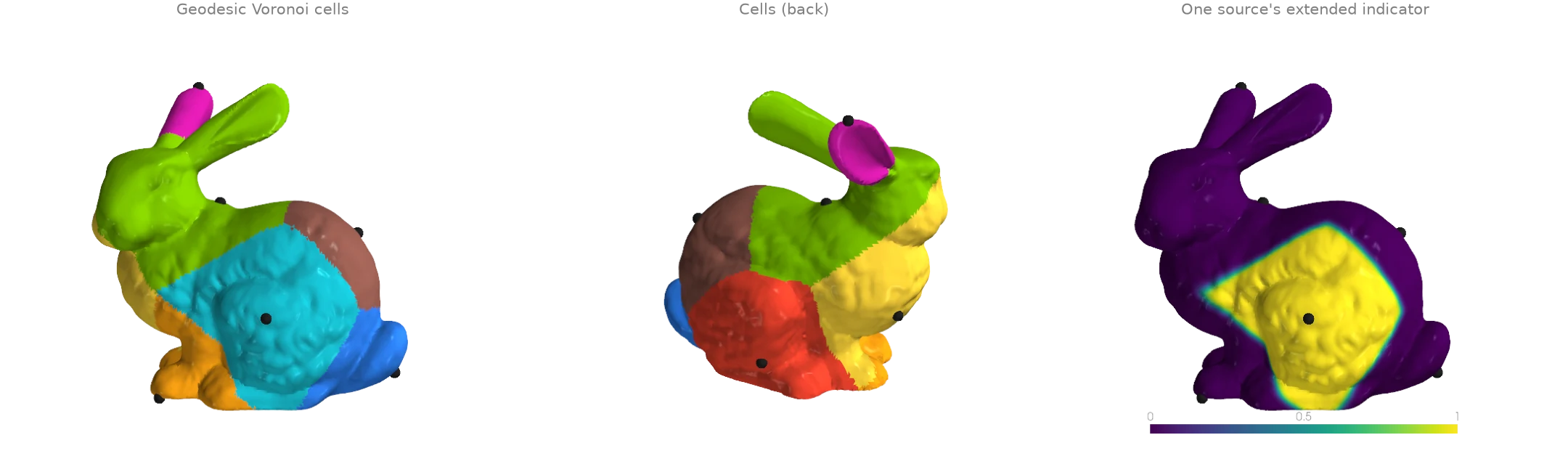

Extending values from a few points (geodesic Voronoi cells)

extend_scalar spreads values given at a few source vertices over the whole surface: every vertex takes the value of its geodesically nearest source, with a short smooth blend where two sources meet. It diffuses the values and an indicator of the sources for the same short time and divides one by the other. Extending each source's indicator in turn and keeping the largest partitions the surface into geodesic Voronoi cells; the Trimesh builds its heat operators once for all eight, and HeatSolver.factor factors them up front, so every call is a direct solve -- exact, which is why the eight weights sum to one to rounding. The sources are spread with farthest_point_sample.

import numpy as np
import warp as wp

import ordito as od
from examples import data

vertices, faces = data.load("bunny", device)
mesh = od.Trimesh(vertices, faces)
mesh.heat_solver().factor()  # every extension below is then a direct solve
sources = od.points.farthest_point_sample(vertices, 8)

# Extend each source's indicator (1 there, 0 at the others); the largest one wins.
weights = np.stack(
    [
        od.heat.extend_scalar(mesh, sources, wp.array(np.eye(8)[k], device=device)).numpy()
        for k in range(8)
    ]
)
cells = weights.argmax(axis=0)
print(f"sources: {sources.numpy().tolist()}")
print(f"vertices per cell: {np.bincount(cells, minlength=8).tolist()}")
print(f"weights sum to 1 within {np.abs(weights.sum(axis=0) - 1).max():.1e}")

Output

sources: [0, 11471, 12277, 24751, 26517, 4047, 13357, 21519]
vertices per cell: [8898, 3126, 3366, 1835, 4533, 4181, 3913, 4982]
weights sum to 1 within 1.1e-15

Modelled on: potpourri3d: extend scalar

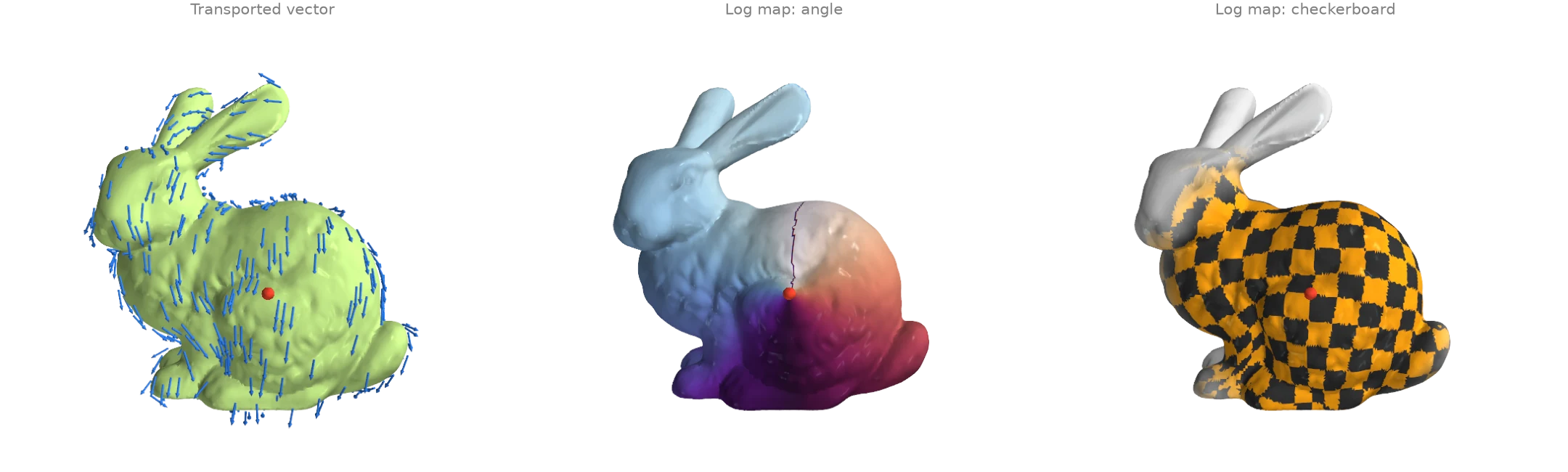

Parallel transport and the logarithmic map

The vector heat method carries a tangent vector from a source vertex to every other vertex along the shortest path. transport_tangent_vectors returns the result in each vertex's own tangent frame, and tangent_to_world turns it into 3-D arrows. log_map combines the same transport with the geodesic distance into 2-D coordinates around the source, a local "unwrapping" of the surface: a checkerboard drawn in those coordinates stays square near the source and bends where the surface curves. Both run on one Trimesh, which builds the vector_heat_operators once for both.

import numpy as np
import warp as wp

import ordito as od
from examples import data

mesh = od.Trimesh(*data.load("bunny", device))
basis_x, basis_y, _ = mesh.vertex_tangent_frames

source = 5088  # a vertex on the flank
transported, resolved = od.heat.transport_tangent_vectors(
    mesh,
    wp.array([source], dtype=wp.int32, device=device),
    wp.array([wp.vec2(1.0, 0.0)], dtype=wp.vec2, device=device),
)
arrows = od.heat.tangent_to_world(transported, basis_x, basis_y)
coordinates = od.heat.log_map(mesh, source)
print(f"resolved vertices: {resolved.numpy().mean():.1%}")
radius = np.linalg.norm(coordinates.numpy(), axis=1)
print(f"largest log-map radius (geodesic distance): {radius.max():.4f}")

Output

resolved vertices: 100.0%
largest log-map radius (geodesic distance): 0.1718

Modelled on: potpourri3d: vector heat · libigl 902

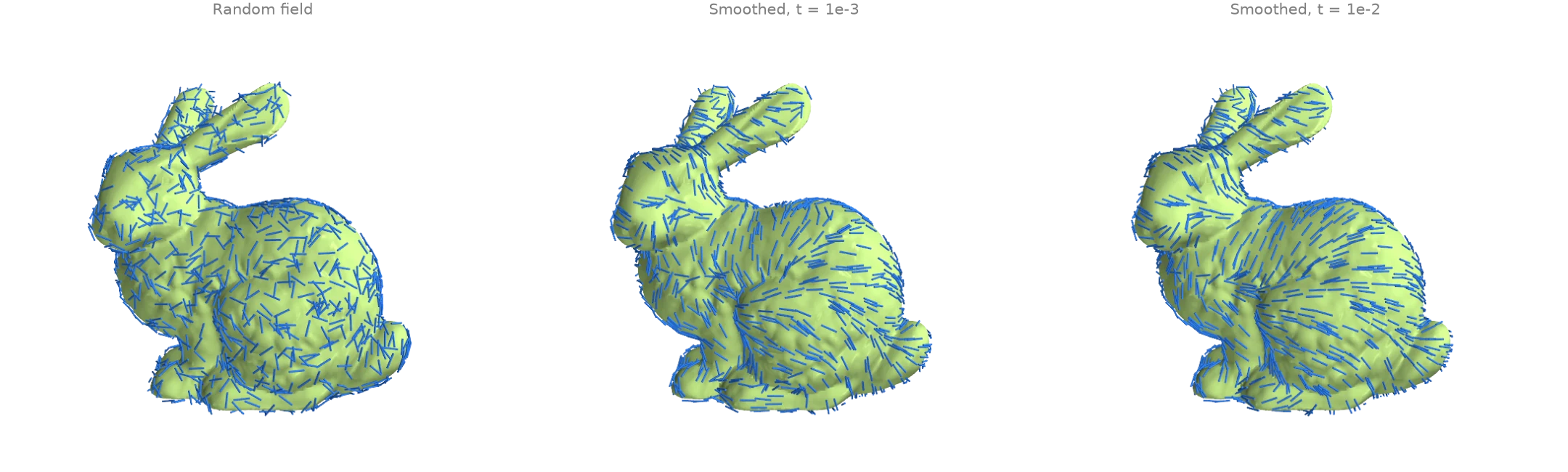

Smoothing a tangent vector field

A random unit vector at every vertex is a tangent field with no structure. diffuse_tangent_field runs one implicit step of the connection Laplacian on it, which averages neighbouring vectors after transporting them into a common frame, so the field straightens out across the surface instead of cancelling against the change of tangent plane. The diffusion time of vector_heat_operators sets how far the averaging reaches. The smoothed fields are normalized to unit length and turned into 3-D vectors by tangent_to_world; the printed alignment compares the two ends of every edges_unique edge.

import numpy as np
import warp as wp

import ordito as od
from examples import data

vertices, faces = data.load("bunny", device)
angle = np.random.default_rng(0).uniform(0.0, 2.0 * np.pi, vertices.shape[0])
noisy = wp.array(np.stack([np.cos(angle), np.sin(angle)], 1), dtype=wp.vec2d, device=device)
edges = od.edges.edges_unique(faces)[0].numpy()

world = {}
for name, t in (("random", None), ("t = 1e-3", 1e-3), ("t = 1e-2", 1e-2)):
    system, _, (basis_x, basis_y, _), preconditioner = od.heat.vector_heat_operators(
        vertices, faces, t
    )
    field = noisy.numpy()
    if t is not None:
        field = od.heat.diffuse_tangent_field(system, noisy, preconditioner=preconditioner)
        field = field.numpy() / np.linalg.norm(field.numpy(), axis=1, keepdims=True)
    tangent = wp.array(field, dtype=wp.vec2, device=device)
    world[name] = od.heat.tangent_to_world(tangent, basis_x, basis_y).numpy()
    cosine = np.einsum("ij,ij->i", world[name][edges[:, 0]], world[name][edges[:, 1]])
    print(f"{name:>9}: mean cosine between neighbours {cosine.mean():.3f}")

Output

   random: mean cosine between neighbours -0.001
 t = 1e-3: mean cosine between neighbours 0.975
 t = 1e-2: mean cosine between neighbours 0.982

Modelled on: libigl 901

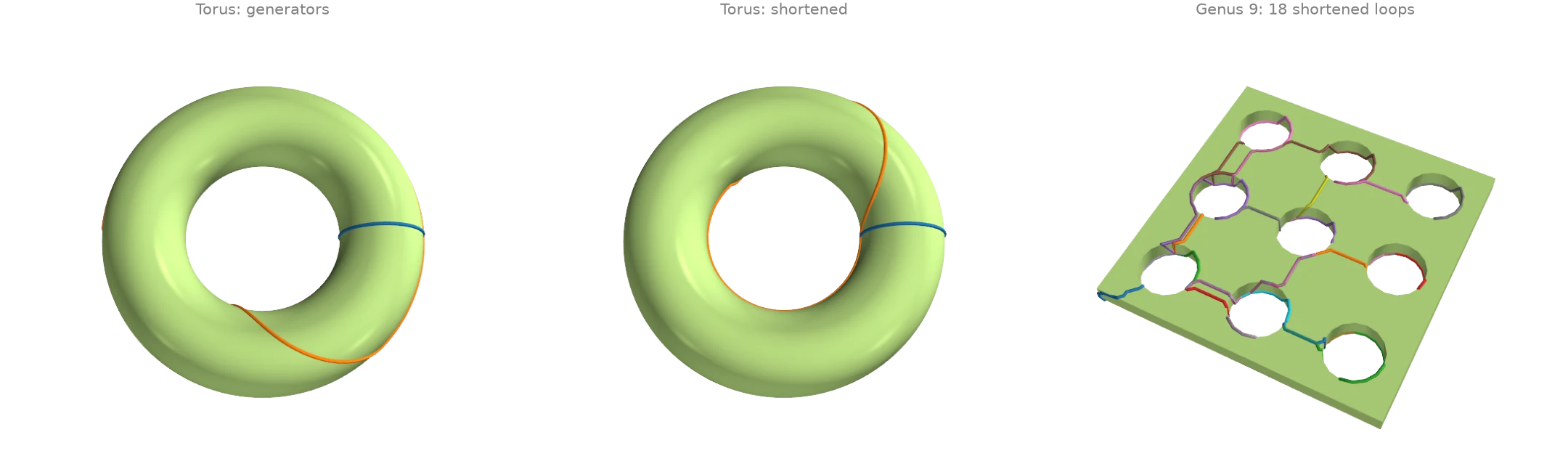

Shortening non-contractible loops

homology_generators returns a basis of the loops that cannot be shrunk to a point: two per handle. They come out of a spanning-tree construction, so they are long and jagged. shorten_loop then shortens each one without changing which way it wraps around the surface, rerouting it one vertex at a time through the shorter side of the vertex's ring, until it settles on a short loop along the mesh edges.

import warp as wp

import ordito as od
from examples import data

result = {}

def total_length(vertices: wp.array[wp.vec3], loops: list[wp.array[wp.int32]]) -> float:
    points = [od.array.gather(vertices, loop) for loop in loops]
    return sum(od.polyline.polyline_length(p, closed=True) for p in points)

for name in ("torus", "handles"):
    vertices, faces = data.load(name, device)
    loops = od.homology.homology_generators(vertices, faces)
    short, sweeps = od.geodesic_walk.shorten_loop(vertices, faces, loops, max_iter=1000)
    before, after = total_length(vertices, loops), total_length(vertices, short)
    print(f"{name}: {len(loops)} loops, length {before:.2f} -> {after:.2f} ({sweeps} sweeps)")
    result[name] = ([loop.numpy() for loop in loops], [loop.numpy() for loop in short])

Output

torus: 2 loops, length 10.74 -> 8.00 (65 sweeps)
handles: 18 loops, length 381.73 -> 357.38 (10 sweeps)

The shortened loops stay on mesh edges, so they are locally shortest edge paths rather than true geodesics. On the torus's regular grid the loop around the hole cannot step off a row of edges without first getting longer, which is why it does not settle exactly on the inner equator.

Modelled on: potpourri3d: geodesic loops
