Repairing meshes

Holes, stitching, orientation, degeneracies, non-manifold elements, self-intersections and tunnels.

Filling holes: fan, minimum weight and smooth

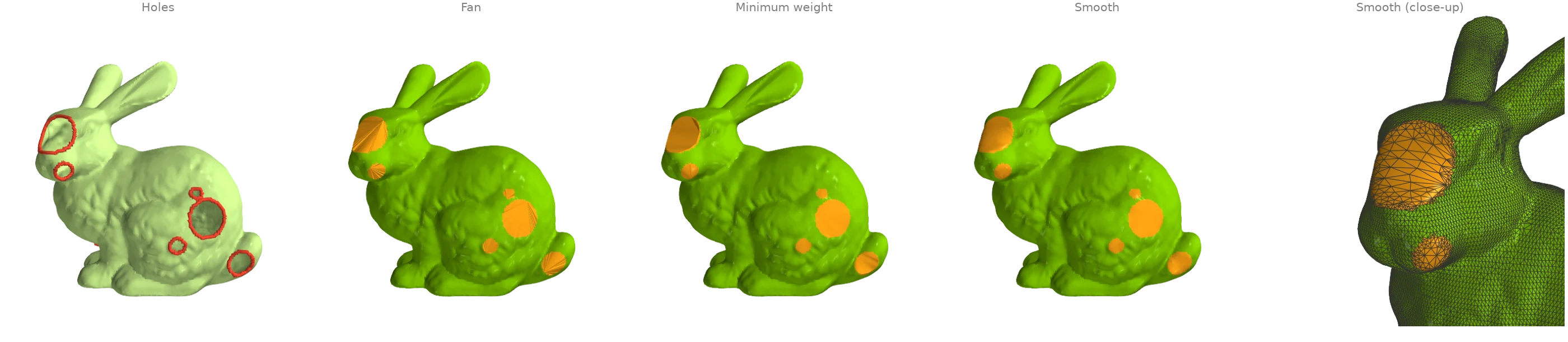

The bunny has holes punched through its side and the scan's own openings in its base. boundary_loops finds every rim, and three fills close them:

fill_fan fans each hole from one rim vertex;
fill_min_weight picks the minimum-weight triangulation of each rim;
fill_smooth refines that patch and fairs it into the surrounding surface.

import ordito as od
from examples import data

vertices, faces = data.load("holey_bunny", device)
loops = od.boundary.boundary_loops(vertices, faces)
print(f"{len(loops)} holes, rims of {sorted(loop.shape[0] for loop in loops)} vertices")

fan_faces = od.holes.fill_fan(vertices, faces)
min_weight_faces = od.holes.fill_min_weight(vertices, faces)
smooth_vertices, smooth_faces, patch = od.holes.fill_smooth(vertices, faces, return_patch=True)
print(
    "watertight after the smooth fill:",
    od.validation.is_watertight(smooth_vertices, smooth_faces),
)

Output

11 holes, rims of [22, 23, 36, 37, 39, 40, 42, 52, 75, 80, 96] vertices
watertight after the smooth fill: True

Modelled on: MeshLib: fill holes · PyVista: fill_holes · pymeshfix: bunny · PyMeshLab: close holes

Filling only the small holes

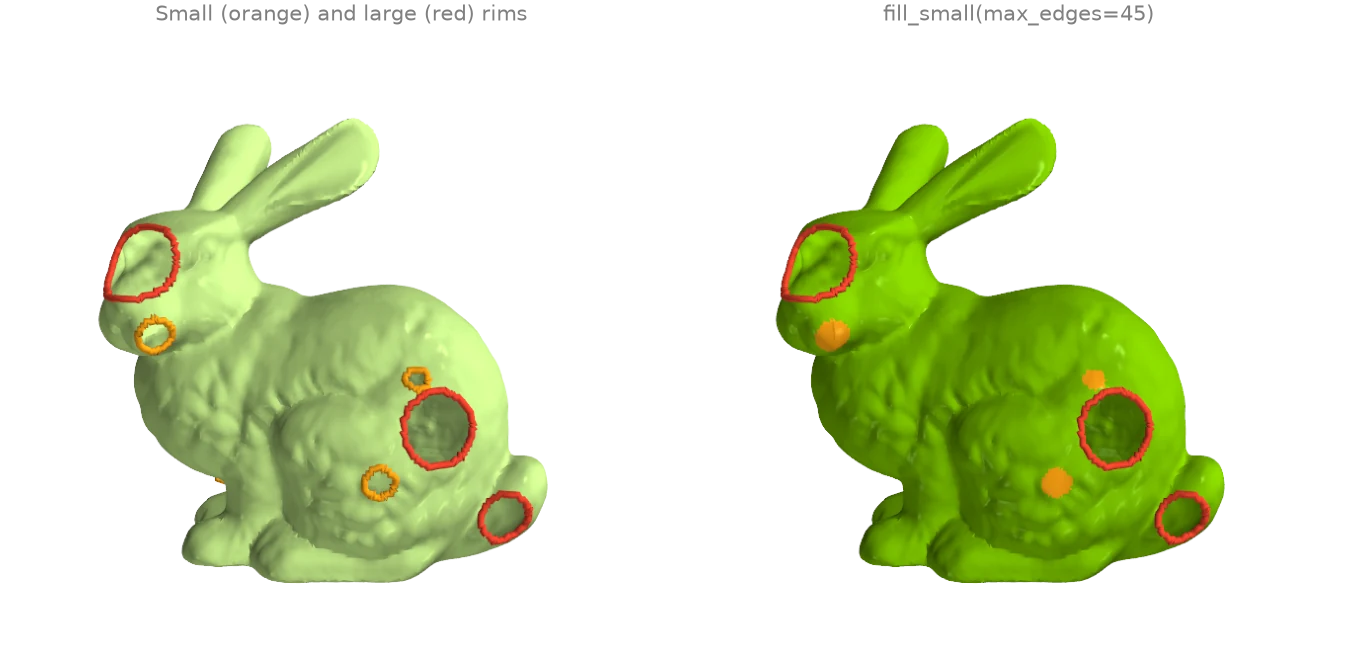

A scan's large openings are often intended while its small holes are dropouts. fill_small closes only the rims up to a size (here 45 boundary edges) with minimum-weight patches and leaves the rest open. fillable_loop_mask answers a different question: which rims a fill over the rim's own vertices can close without creating an invalid mesh. The holes punched into the bunny have ragged rims with chords (an existing edge between two rim vertices), which a fill could duplicate, so they are flagged; the scan's own holes in the base are not.

import ordito as od
from examples import data

vertices, faces = data.load("holey_bunny", device)
loops = od.boundary.boundary_loops(vertices, faces)
fillable = od.holes.fillable_loop_mask(vertices, faces, loops).numpy()
print("rim sizes:", [loop.shape[0] for loop in loops])
print("chord-free and simple:", fillable.tolist())

filled = od.holes.fill_small(vertices, faces, max_edges=45)
left = od.boundary.boundary_loops(vertices, filled)
print(f"after fill_small: {len(left)} holes left, of {[loop.shape[0] for loop in left]} edges")

Output

rim sizes: [96, 75, 37, 52, 22, 36, 23, 42, 39, 40, 80]
chord-free and simple: [False, False, False, False, False, False, False, True, True, True, True]
after fill_small: 4 holes left, of [96, 75, 52, 80] edges

Modelled on: pymeshfix · PyMeshLab: close holes

Stitching two boundaries

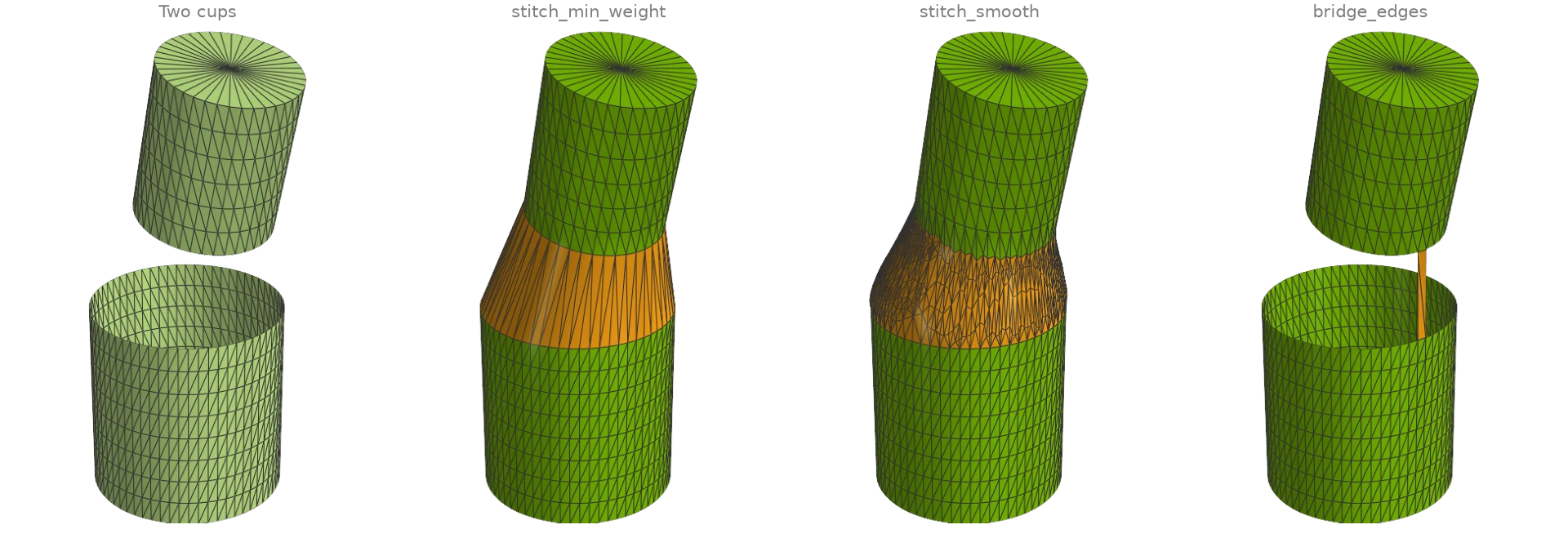

Two open cups face each other across a gap, with rims of different radius, resolution and tilt. stitch_min_weight joins the rims with the band of triangles that minimizes a stitching metric; stitch_smooth then refines that band and fairs it into both surfaces. bridge_edges is the local operation underneath: it tacks one boundary edge of each rim together with two triangles, turning the two rims into one.

import numpy as np

import ordito as od
from examples import data

vertices_a, faces_a = data.load("cup_bottom", device)
vertices_b, faces_b = data.load("cup_top", device)
band_vertices, band_faces = od.holes.stitch_min_weight(vertices_a, faces_a, vertices_b, faces_b)
smooth_vertices, smooth_faces, band = od.holes.stitch_smooth(
    vertices_a, faces_a, vertices_b, faces_b, return_patch=True
)
print("stitched watertight:", od.validation.is_watertight(smooth_vertices, smooth_faces))

# Bridge the closest pair of boundary edges, one on each rim.
vertices, faces = od.combine.concatenate([(vertices_a, faces_a), (vertices_b, faces_b)])
rim = od.boundary.oriented_boundary_edges(vertices, faces).numpy()
on_a = rim[:, 0] < vertices_a.shape[0]
mid = vertices.numpy()[rim].mean(axis=1)
gap = np.linalg.norm(mid[on_a][:, None] - mid[~on_a][None], axis=2)
i, j = np.unravel_index(gap.argmin(), gap.shape)
bridged = od.holes.bridge_edges(vertices, faces, tuple(rim[on_a][i]), tuple(rim[~on_a][j]))
print("rims after the bridge:", len(od.boundary.boundary_loops(vertices, bridged)))

Output

stitched watertight: True
rims after the bridge: 1

Modelled on: MeshLib: stitch holes

Joining nearby open components

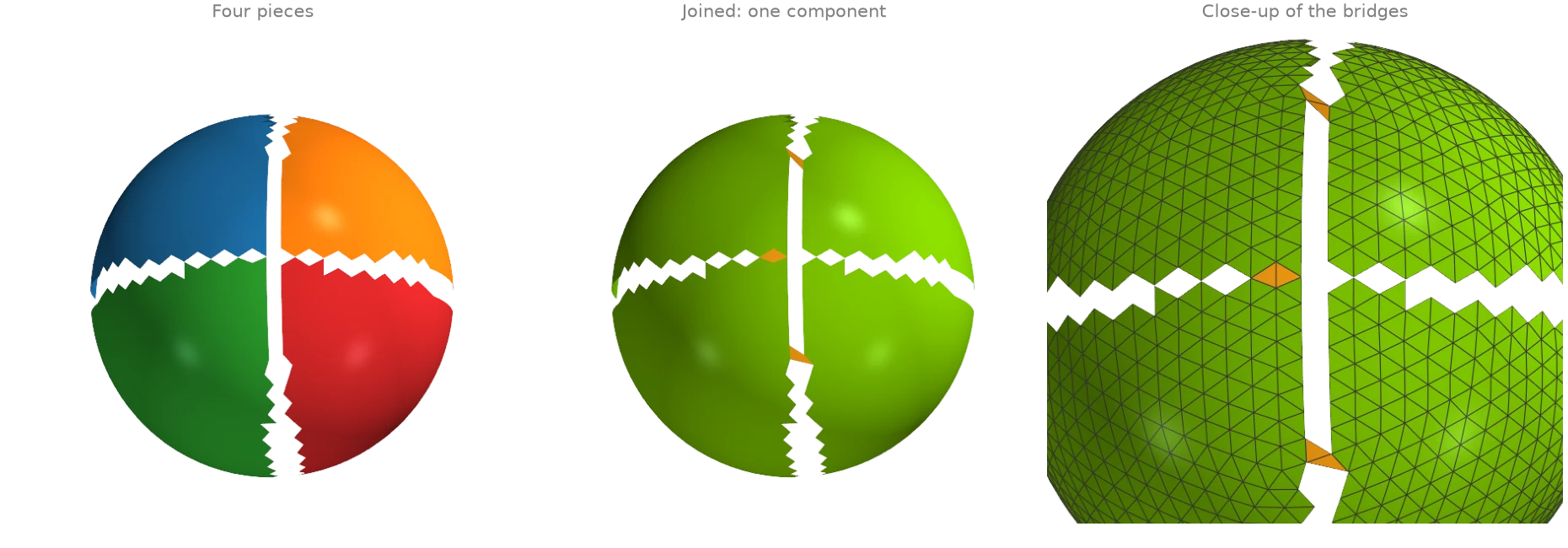

A surface torn into four pieces by two narrow cracks is four components. join_closest_components repeatedly bridges the closest pair of boundary edges on two different open components with a two-triangle patch (see bridge_edges) until one component is left. Nothing moves and no vertex is added; max_distance would refuse joins across a wider gap. face_connected_component_labels counts the components before and after.

import numpy as np

import ordito as od
from examples import data

vertices, faces = data.load("torn_hemisphere", device)
joined = od.holes.join_closest_components(vertices, faces)

before = od.adjacency.face_connected_component_labels(faces).numpy()
after = od.adjacency.face_connected_component_labels(joined).numpy()
print(f"components: {np.unique(before).size} -> {np.unique(after).size}")
print(f"bridge triangles: {(joined.shape[0] - faces.shape[0]) // 3}")

Output

components: 4 -> 1
bridge triangles: 6

Modelled on: MeshLib examples

Degenerate triangles, duplicate vertices and T-vertices

Two small patches carry the defects that break normals, cotangent weights and curvature.

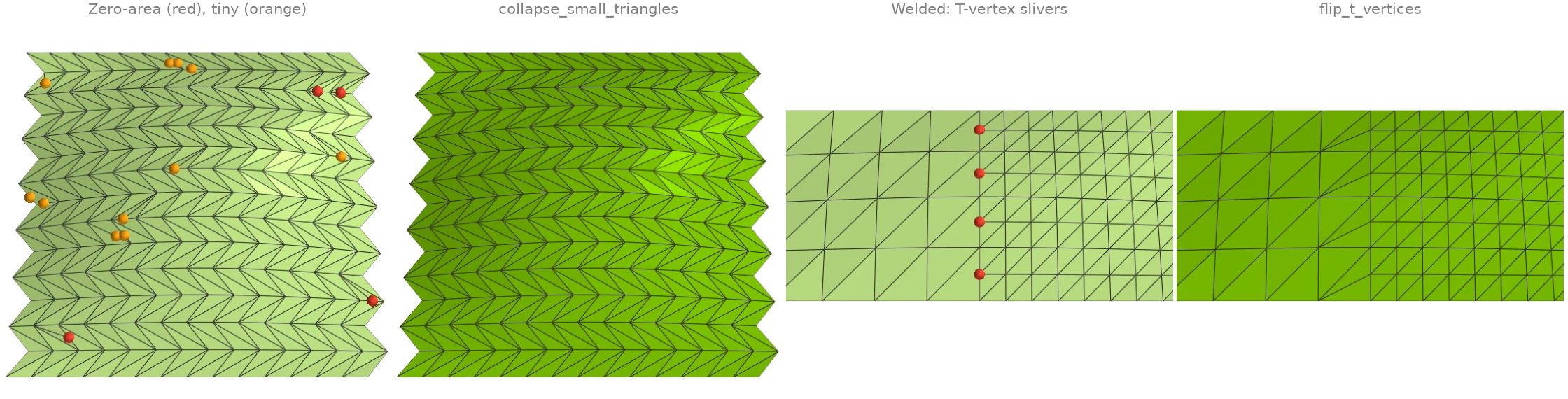

The first has needles, caps and exactly degenerate triangles (marked). face_nondegenerate_mask finds the zero-area ones and remove_degenerate_faces would drop them; collapse_small_triangles instead collapses the shortest edge of every triangle below an area threshold, which removes the needles and caps as well without opening a hole.
The second is two grids stitched at different resolutions and never welded. remove_duplicated_vertices welds the seam; the fine side's extra seam vertices are then T-vertices, each with a sliver triangle (marked) across the coarse edge, and flip_t_vertices flips those slivers away.

import ordito as od
from examples import data

vertices, faces = data.load("sliver_patch", device)
zero_area = ~od.triangles.face_nondegenerate_mask(vertices, faces).numpy()
_, dropped = od.repair.remove_degenerate_faces(vertices, faces)
collapsed_vertices, collapsed = od.repair.collapse_small_triangles(vertices, faces)
print(f"zero-area faces: {zero_area.sum()}; faces after dropping them: {dropped.shape[0] // 3}")
print(f"faces after collapsing small ones: {faces.shape[0] // 3} -> {collapsed.shape[0] // 3}")

patch_vertices, patch_faces = data.load("t_vertex_patch", device)
welded_vertices, _, _, welded = od.repair.remove_duplicated_vertices(
    patch_vertices, patch_faces, epsilon=1e-6
)
flipped = od.repair.flip_t_vertices(welded_vertices, welded)
for name, f in (("welded", welded), ("flipped", flipped)):
    quality = od.triangles.face_quality(welded_vertices, f).numpy()
    print(f"{name}: {(quality > 40).sum()} slivers, worst aspect ratio {quality.max():.0f}")
print(f"seam vertices welded: {patch_vertices.shape[0] - welded_vertices.shape[0]}")

Output

zero-area faces: 4; faces after dropping them: 412
faces after collapsing small ones: 416 -> 392
welded: 4 slivers, worst aspect ratio 1590
flipped: 0 slivers, worst aspect ratio 2
seam vertices welded: 5

Modelled on: MeshLib: fix degeneracies · PyMeshLab: cleaning

Consistent and outward orientation

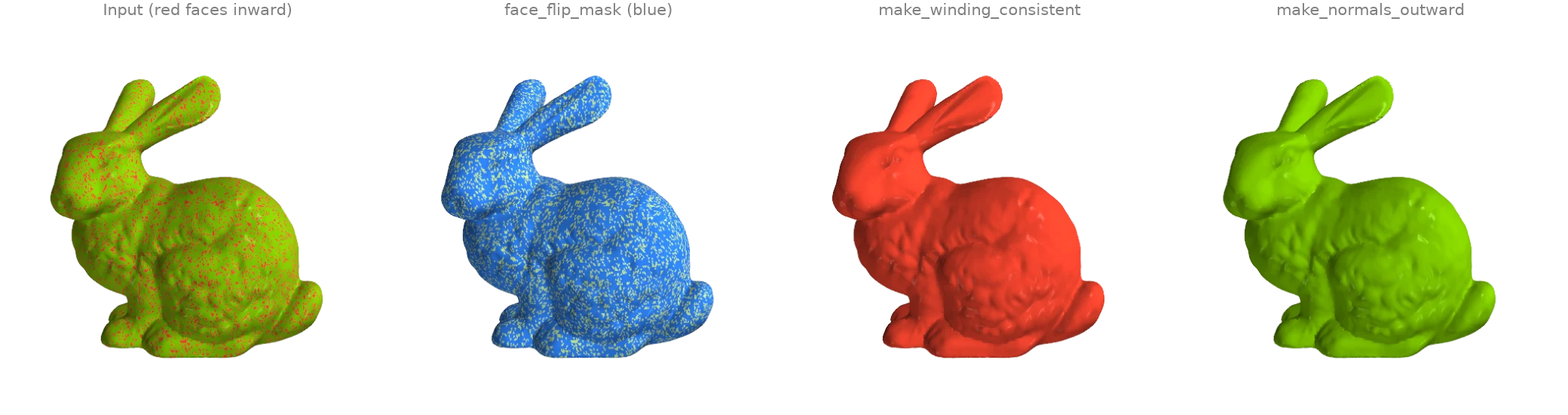

A fifth of the bunny's triangles have their winding reversed (red: facing inward). face_flip_mask propagates an orientation across shared edges and flags every face that disagrees with its component's first face; make_winding_consistent applies those flips. That makes the winding coherent but not necessarily outward: here the seed face happened to face inward, so everything did. make_normals_outward also fixes the global sign from the enclosed volume. The scan is open at its base, so it is called with multibody=True: the default only flips a watertight mesh (trimesh's rule).

import ordito as od
from examples import data

vertices, faces = data.load("flipped_bunny", device)
print("winding consistent:", od.validation.is_winding_consistent(faces))
flips = od.validation.face_flip_mask(faces).numpy()
print(f"faces to flip: {flips.sum()} of {flips.size}")

consistent = od.repair.make_winding_consistent(faces)
# The scan has holes in its base: the whole-mesh rule only flips a watertight mesh, the
# per-body rule trusts each component's own signed volume.
outward = od.repair.make_normals_outward(vertices, faces, multibody=True)
for name, f in (("consistent", consistent), ("outward", outward)):
    print(f"{name}: signed volume {od.measures.volume(vertices, f):+.6f}")

Output

winding consistent: False
faces to flip: 55574 of 69451
consistent: signed volume -0.000770
outward: signed volume +0.000770

Modelled on: libigl 706 · PyMeshLab · MeshLib examples

Non-manifold repair

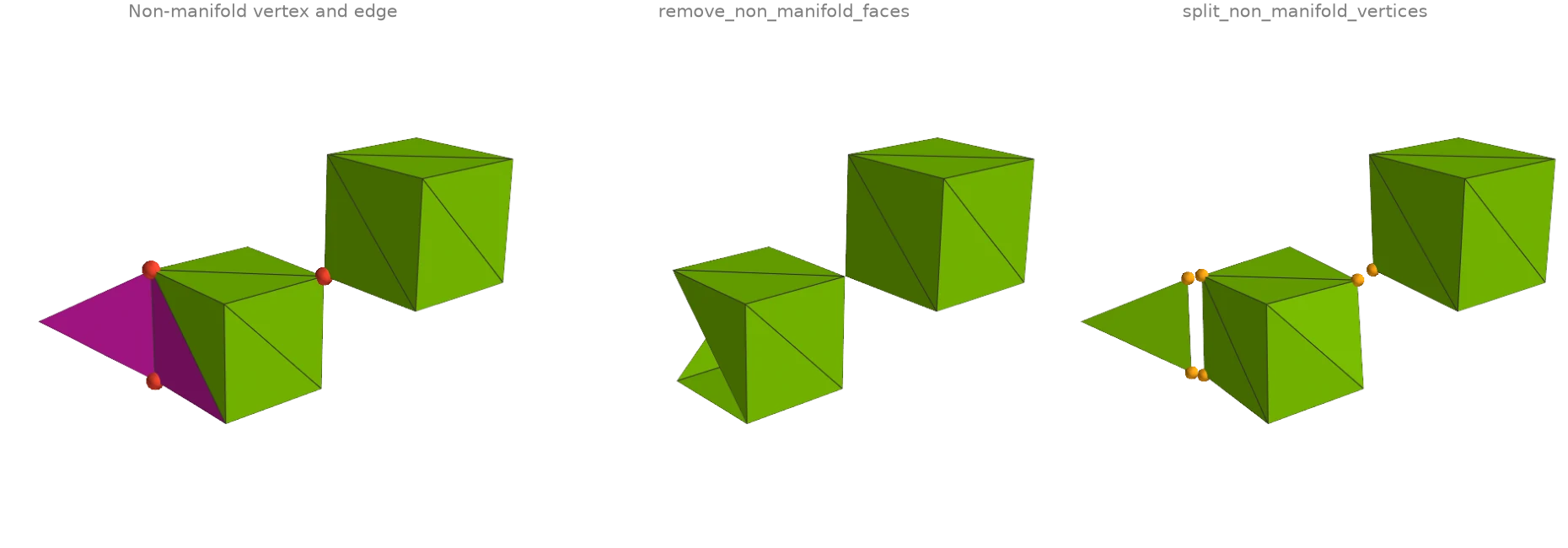

Two cubes meet at a single corner (a non-manifold vertex: two fans of faces touch only there), and a fin is glued to one cube's edge (a non-manifold edge with three faces). vertex_manifold_mask and edge_manifold_mask find them. Two repairs with different trade-offs: remove_non_manifold_faces deletes every face on a non-manifold edge, while split_non_manifold_vertices keeps every face and duplicates vertices instead, so the cubes come apart at the corner and the fin is cut loose along its edge (pulled apart slightly in the image). Deleting faces cannot fix the shared corner, so only the split result is manifold.

import ordito as od
from examples import data

vertices, faces = data.load("broken_box", device)
bad_vertices = ~od.validation.vertex_manifold_mask(vertices, faces).numpy()
bad_faces = ~od.validation.edge_manifold_mask(faces).numpy()
print(f"non-manifold vertices: {bad_vertices.sum()}")
print(f"faces on a non-manifold edge: {bad_faces.sum()}")

removed_vertices, removed_faces = od.repair.remove_non_manifold_faces(vertices, faces)
split_vertices, split_faces, source = od.repair.split_non_manifold_vertices(vertices, faces)
for name, (v, f) in {
    "removed": (removed_vertices, removed_faces),
    "split": (split_vertices, split_faces),
}.items():
    manifold = od.validation.is_vertex_manifold(f) and od.validation.is_edge_manifold(f)
    print(f"{name}: {f.shape[0] // 3} faces, {v.shape[0]} vertices, manifold: {manifold}")

Output

non-manifold vertices: 3
faces on a non-manifold edge: 3
removed: 22 faces, 15 vertices, manifold: False
split: 25 faces, 19 vertices, manifold: True

Modelled on: PyMeshLab · Open3D: mesh properties

Fixing self-intersections

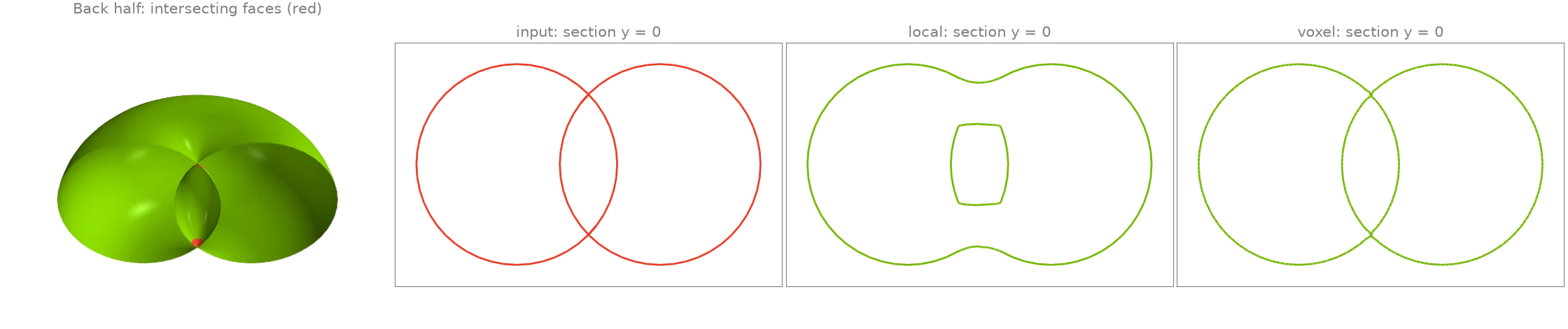

A spindle torus, whose tube radius exceeds its ring radius, passes through itself around its axis. face_self_intersecting_mask finds the triangles that cross a non-adjacent one (red). fix_self_intersections removes them in one of two ways: "local" cuts out the intersecting faces plus a ring around them and refills the holes, keeping the rest of the mesh as it was; "voxel" rebuilds the whole surface as the zero level set of its signed distance field. The cross-sections through the axis show what changed: the lens-shaped core where the tube overlaps itself has winding number 0, so it is a cavity, and both repairs keep it as one, bounded by a surface that no longer crosses the outer shell (the local repair leaves it as a separate inner shell, the voxel rebuild lets the two touch). The 3-D view is cut in half to show the core.

import ordito as od
from examples import data

vertices, faces = data.load("self_intersecting_torus", device)
crossing = od.validation.face_self_intersecting_mask(vertices, faces).numpy()
print(f"self-intersecting faces: {crossing.sum()} of {crossing.size}")

results = {}
for method in ("local", "voxel"):
    results[method] = od.repair.fix_self_intersections(vertices, faces, method=method)
    v, f = results[method]
    left = od.validation.face_self_intersecting_mask(v, f).numpy().sum()
    print(f"{method}: {f.shape[0] // 3} faces, {left} still intersecting")

Output

self-intersecting faces: 384 of 9216
local: 9852 faces, 0 still intersecting
voxel: 54484 faces, 0 still intersecting

Modelled on: MeshLib: self-intersections · pymeshfix

Removing tunnels

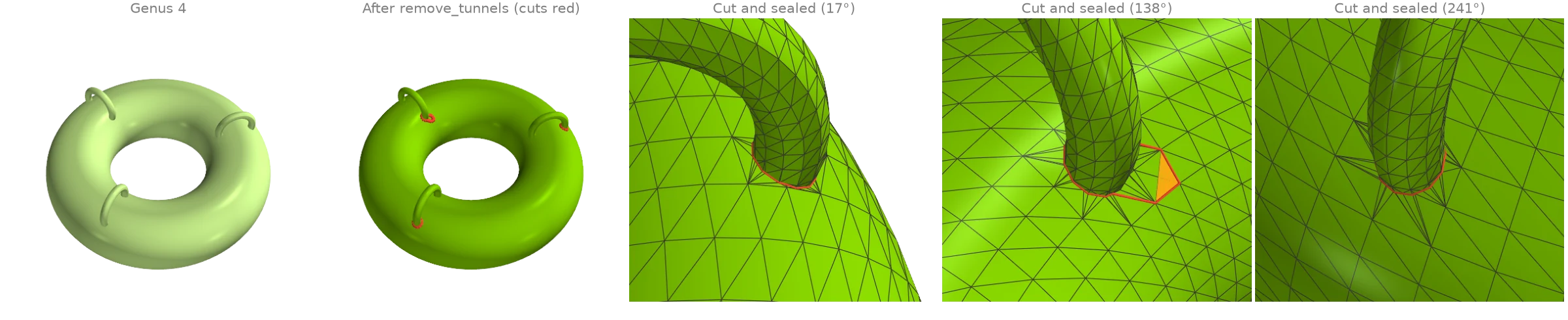

A ring torus carries three thin handles fused onto its tube, the kind of spurious topology a scan picks up where two sheets touch: genus 4, of which only the ring's own tunnel is meant. remove_tunnels computes a greedy homology basis (each loop the shortest independent one through its root), shortens each loop within its class, and cuts the surface along every loop no longer than max_length, sealing both rims of each cut (red); nothing moves, so the cut is only visible as new topology. The threshold sits far below the ring's own loops, so the intended tunnel survives. One call removes at most one tunnel per family of dependent loops, hence the loop until nothing is cut. euler_characteristic tracks the genus: all three handles are cut and the torus keeps its own tunnel.

import ordito as od
from examples import data

vertices, faces = data.load("thin_handles", device)
print("genus before:", (2 - od.measures.euler_characteristic(faces)) // 2)

n_input = faces.shape[0] // 3
removed = 1
while removed:
    vertices, faces, removed = od.repair.remove_tunnels(vertices, faces, max_length=1.0)
    print(f"cut {removed} tunnel(s)")
print("genus after:", (2 - od.measures.euler_characteristic(faces)) // 2)

Output

genus before: 4
cut 1 tunnel(s)
cut 2 tunnel(s)
cut 0 tunnel(s)
genus after: 1

Modelled on: MeshLib examples

One-call watertight solid

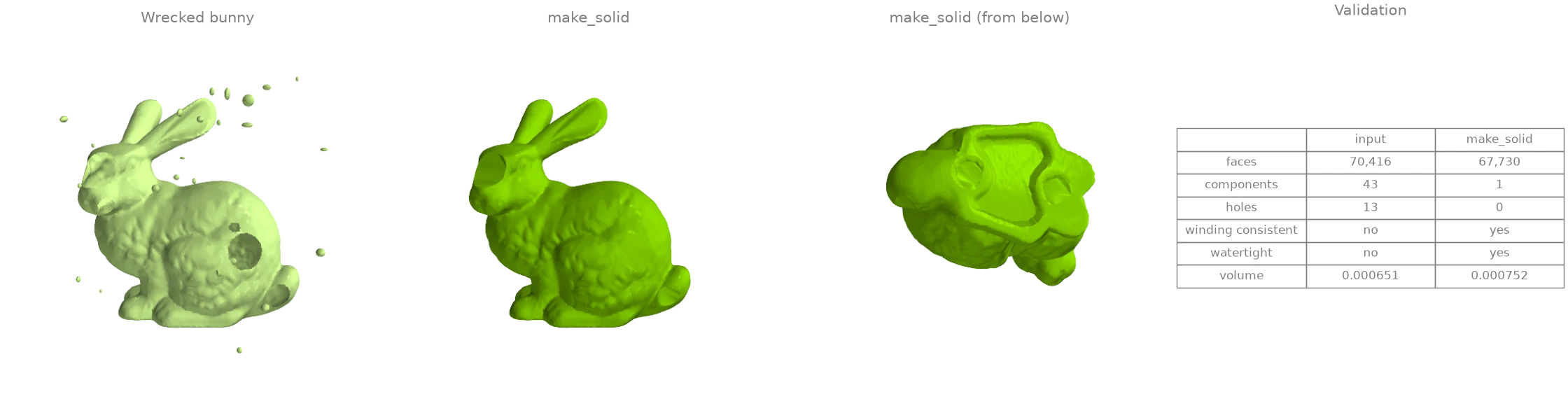

The wrecked bunny has everything at once: punched holes, 5 % of its faces flipped, an unwelded band of duplicated vertices and forty floating blobs of debris. After welding the duplicates with remove_duplicated_vertices, make_solid runs the whole repair loop: connectivity repair and consistent winding, debris removal, hole filling, then degeneracy and self-intersection passes until nothing changes. make_volume finally turns the closed result outward. The table compares the two with the ordito.validation predicates.

import numpy as np
import warp as wp

import ordito as od
from examples import data

vertices, faces = data.load("wrecked_bunny", device)
welded, _, _, welded_faces = od.repair.remove_duplicated_vertices(vertices, faces, epsilon=1e-6)
solid, solid_faces = od.repair.make_solid(welded, welded_faces)
solid_faces = od.repair.make_volume(solid, solid_faces)

def report(v: wp.array[wp.vec3], f: wp.array[wp.int32]) -> dict[str, object]:
    labels = od.adjacency.face_connected_component_labels(f).numpy()
    return {
        "faces": f.shape[0] // 3,
        "components": np.unique(labels).size,
        "holes": len(od.boundary.boundary_loops(v, f)),
        "winding consistent": od.validation.is_winding_consistent(f),
        "watertight": od.validation.is_watertight(v, f),
        "volume": round(od.measures.volume(v, f), 6),
    }

before, after = report(vertices, faces), report(solid, solid_faces)
for key in before:
    print(f"{key}: {before[key]} -> {after[key]}")

Output

faces: 70416 -> 67730
components: 43 -> 1
holes: 13 -> 0
winding consistent: False -> True
watertight: False -> True
volume: 0.000651 -> 0.000752

What make_solid runs, in order. Each stage is a public function you can call alone when only one applies. (1) It validates the faces and raises ValueError on an index past the vertex count. (2) It repairs connectivity: remove_unreferenced_vertices, make_winding_consistent, split_non_manifold_vertices. (3) It chooses what to keep: keep_largest=True (the default) runs remove_small_components, which drops the debris here, and join_components=True runs join_closest_components instead (H4). (4) It fills every hole with fill_min_weight. (5) It cleans up until nothing changes (at most max_iter rounds): remove_degenerate_faces, collapse_small_triangles, fix_self_intersections, with the small-component filter again, since cutting out an intersection can split off a fragment. (6) It fills once more, last, so that no cleanup pass can reopen a hole a sliver closed.

make_solid has no success flag: check the result with is_watertight, as the table does. A repaired scan is usually remeshed next, to even out the fill triangles: see isotropic remeshing.

Modelled on: pymeshfix · MeshLib examples
