Spatial queries

Ray casting, closest points, distances between shapes, inside/outside tests and neighbour search.

Ray casting a depth and a normal image

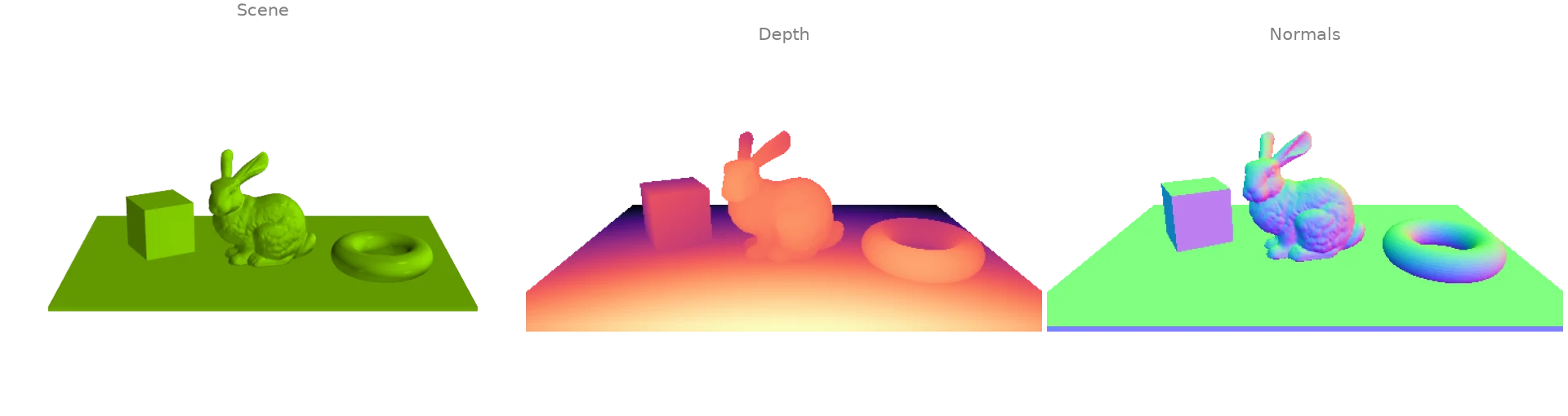

One ray per pixel of a pinhole camera is cast against the scene's BVH with intersects_location. Each hit gives the depth of its pixel, and the normal of the face it struck from face_normals_and_areas gives the pixel's normal: a ray tracer's first bounce in a few lines.

import numpy as np
import warp as wp

import ordito as od
from examples import data

vertices, faces = data.load("scene", device)
mesh = wp.Mesh(points=vertices, indices=faces)

# A pinhole camera at `eye` looking at `target`, one ray per pixel.
height, width, fov = 300, 480, np.radians(45.0)
eye, target, up = (
    np.array([0.0, 1.4, 3.2]),
    np.array([0.0, 0.35, 0.0]),
    np.array([0.0, 1.0, 0.0]),
)
forward = (target - eye) / np.linalg.norm(target - eye)
right = np.cross(forward, up) / np.linalg.norm(np.cross(forward, up))
v, u = np.mgrid[0:height, 0:width]
scale = np.tan(fov / 2) / height * 2
directions = (
    forward
    + (u - width / 2)[..., None] * scale * right
    - (v - height / 2)[..., None] * scale * np.cross(right, forward)
).reshape(-1, 3)
origins = wp.array(np.broadcast_to(eye, directions.shape), dtype=wp.vec3, device=device)
directions = wp.array(directions, dtype=wp.vec3, device=device)

locations, ray_index, face_index = od.ray.intersects_location(mesh, origins, directions)
face_normals, _ = od.triangles.face_normals_and_areas(vertices, faces)

depth = np.full(height * width, np.nan)
depth[ray_index.numpy()] = np.linalg.norm(locations.numpy() - eye, axis=1)
normal = np.zeros((height * width, 3))
normal[ray_index.numpy()] = face_normals.numpy()[face_index.numpy()]
depth, normal = depth.reshape(height, width), normal.reshape(height, width, 3)
print(f"{ray_index.shape[0]} of {height * width} rays hit the scene")

Output

53747 of 144000 rays hit the scene

Modelled on: Open3D: ray casting · trimesh: raytrace · libigl 608

Rays against a mesh: hits and misses

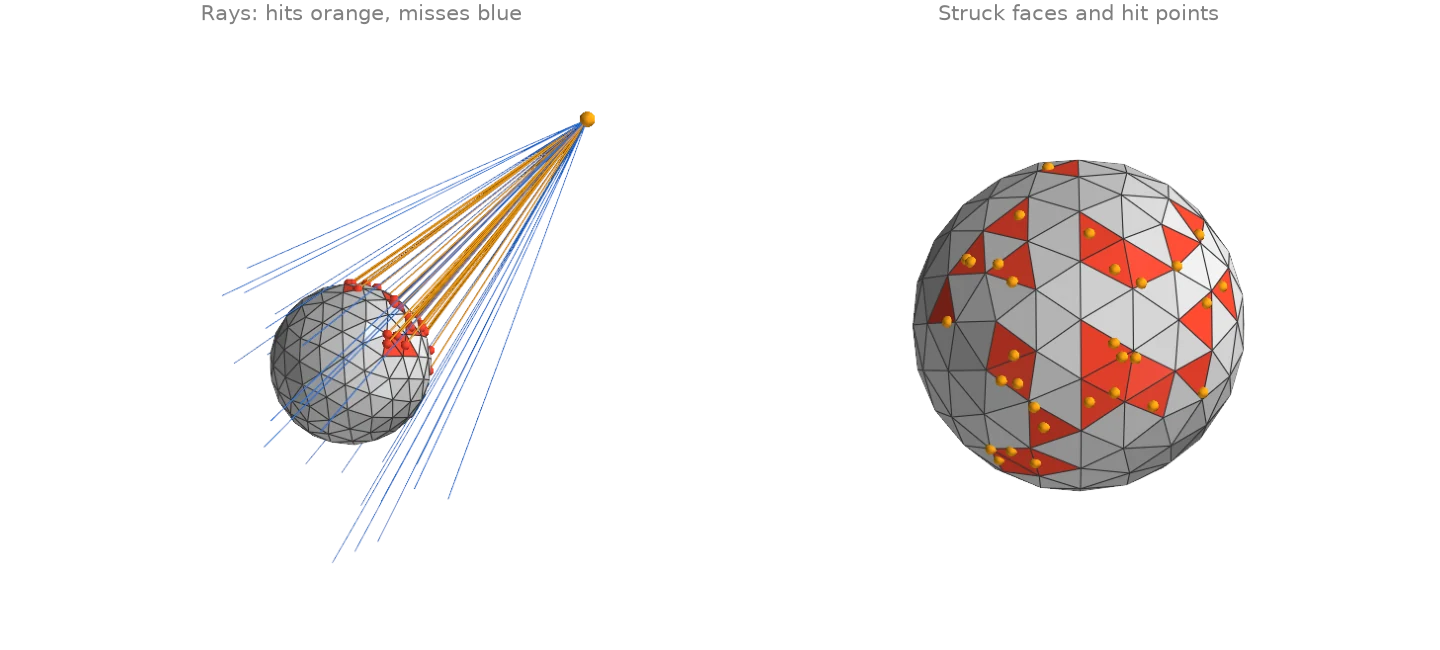

A fan of rays from one point is shot at an icosphere. intersects_any answers hit or miss for each ray, and intersects_location returns the first hit of every ray that strikes: its position, the ray it belongs to and the face it struck.

import numpy as np
import warp as wp

import ordito as od

vertices, faces = od.creation.icosphere(subdivisions=2, device=device)
mesh = wp.Mesh(points=vertices, indices=faces)

# 60 rays from one eye point, aimed at random targets around the sphere.
rng = np.random.default_rng(0)
eye = np.array([3.0, 1.8, 2.4])
targets = rng.uniform(-1.2, 1.2, (60, 3))
origins = wp.array(np.broadcast_to(eye, targets.shape), dtype=wp.vec3, device=device)
directions = wp.array(targets - eye, dtype=wp.vec3, device=device)

hit = od.ray.intersects_any(mesh, origins, directions)
locations, ray_index, face_index = od.ray.intersects_location(mesh, origins, directions)
print(f"{int(hit.numpy().sum())} of {targets.shape[0]} rays hit the sphere")
print(f"{np.unique(face_index.numpy()).size} distinct faces struck")

Output

30 of 60 rays hit the sphere
24 distinct faces struck

Modelled on: trimesh: ray · PyVista: ray_trace

Closest points on a surface

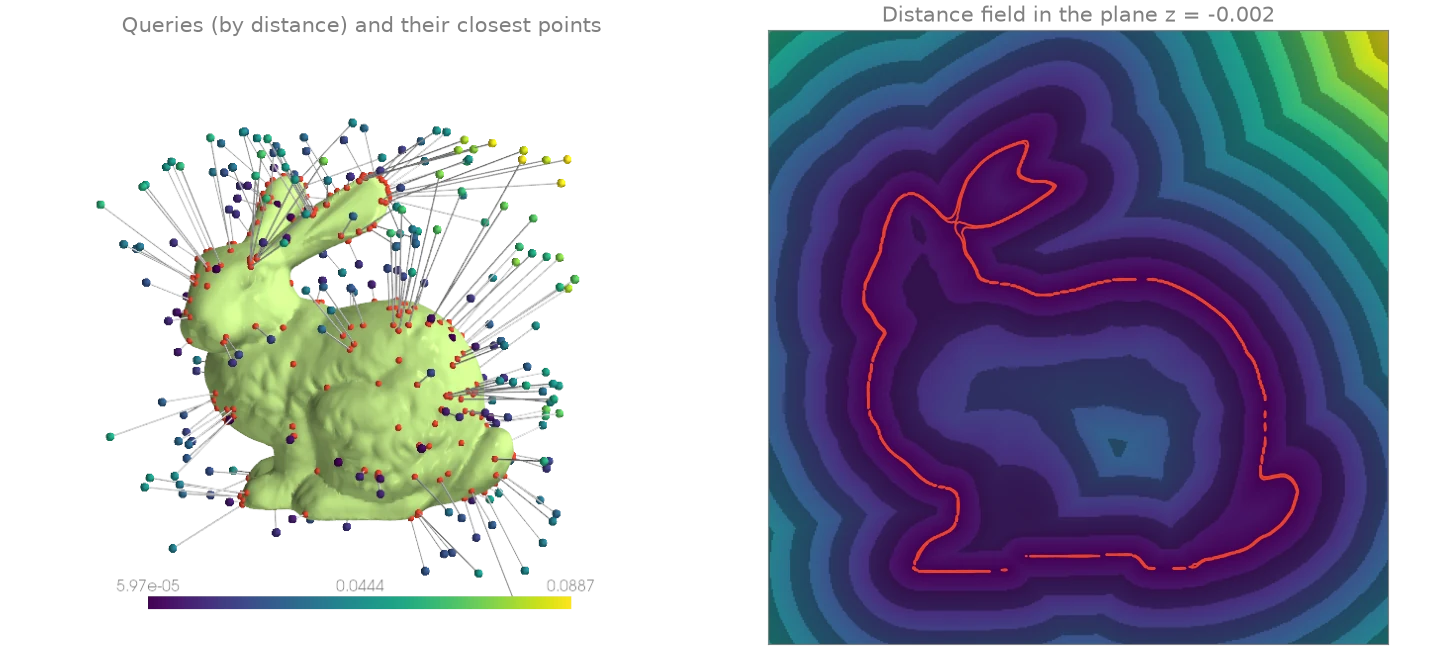

closest_point_on_mesh projects every query point onto the nearest point of the surface and returns that point, its distance and the face it lies on. Here it runs on random points around the bunny (the box comes from aabb) and on a dense grid in a plane through it, whose distances form the unsigned distance field of the surface.

import numpy as np
import warp as wp

import ordito as od
from examples import data

vertices, faces = data.load("bunny", device)
lower, upper = od.bounds.aabb(vertices)
lower, upper = np.array(lower), np.array(upper)
margin = 0.15 * (upper - lower)

rng = np.random.default_rng(4)
queries = rng.uniform(lower - margin, upper + margin, (300, 3))
queries = wp.array(queries, dtype=wp.vec3, device=device)
closest, distance, _ = od.proximity.closest_point_on_mesh(vertices, faces, queries)

# The same query on a 400 x 400 grid in the plane z = mid-depth: an unsigned distance field.
x, y = np.meshgrid(
    np.linspace(lower[0] - margin[0], upper[0] + margin[0], 400),
    np.linspace(lower[1] - margin[1], upper[1] + margin[1], 400),
)
grid = np.stack([x, y, np.full_like(x, 0.5 * (lower[2] + upper[2]))], axis=-1)
_, field, _ = od.proximity.closest_point_on_mesh(
    vertices, faces, wp.array(grid.reshape(-1, 3), dtype=wp.vec3, device=device)
)
print(f"query distances: {distance.numpy().min():.4f} to {distance.numpy().max():.4f}")

Output

query distances: 0.0001 to 0.0887

Modelled on: trimesh: nearest · Open3D: distance queries

Distance between two surfaces

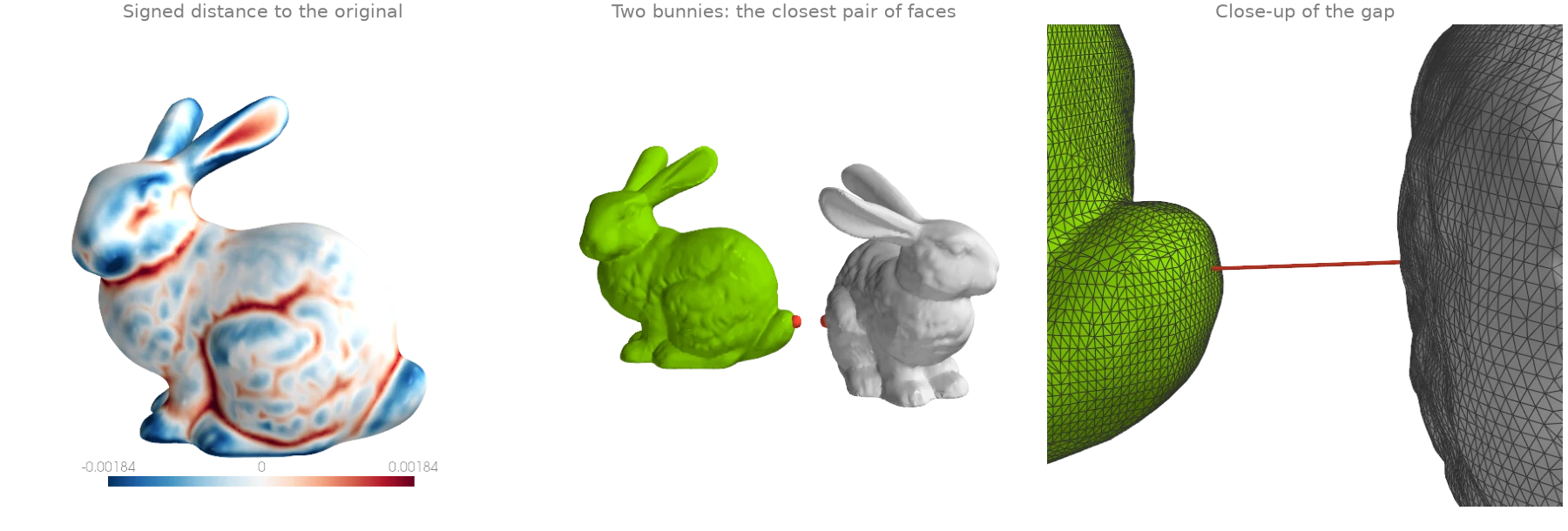

How far one surface lies from another, two ways. Per vertex: signed_distance_on_mesh measures every vertex of a smoothed bunny (filter_laplacian) against the original, with a sign (negative inside) that shows where smoothing ate into the shape and where it pushed out. As one number: mesh_to_mesh_distance returns the exact clearance between two disjoint meshes and the pair of faces that realises it.

import warp as wp

import ordito as od
from examples import data

vertices, faces = data.load("bunny", device)
smoothed = od.smoothing.filter_laplacian(vertices, faces, lamb=0.5, iterations=40)
signed = od.proximity.signed_distance_on_mesh(vertices, faces, smoothed, sign_mode="winding")
print(f"smoothed vs original: {signed.numpy().min():.5f} to {signed.numpy().max():.5f}")

# A second bunny, turned and set beside the first: how close do they come?
turned = vertices.numpy() @ data.rotation((0.0, 1.0, 0.0), 120.0).T + [0.12, 0.0, 0.02]
turned = wp.array(turned, dtype=wp.vec3, device=device)
clearance, face_a, face_b = od.proximity.mesh_to_mesh_distance(vertices, faces, turned, faces)
print(f"clearance {clearance:.5f} between faces {face_a} and {face_b}")

Output

smoothed vs original: -0.00278 to 0.00263
clearance 0.02464 between faces 16023 and 54012

Modelled on: PyVista: distance between surfaces · MeshLib: signed distance · PyMeshLab: distance

Inside / outside classification

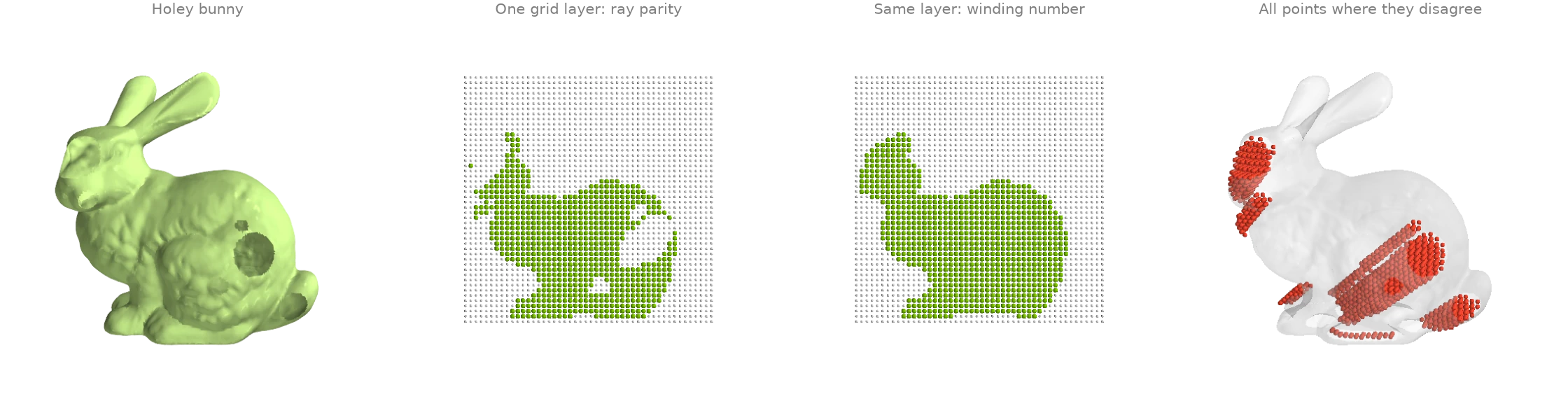

Which points of a grid lie inside the bunny? The bunny here has holes punched in its side, so "inside" is ill-posed for a ray test: contains_points votes over the parity of a few rays, and a ray that escapes through a hole flips its vote. The generalized winding number, signed_distance_on_mesh with sign_mode="winding", degrades gracefully instead: it counts how many times the surface wraps around a point, and a small hole only changes that count slightly.

import numpy as np
import warp as wp

import ordito as od
from examples import data

vertices, faces = data.load("holey_bunny", device)
lower, upper = (np.array(corner) for corner in od.bounds.aabb(vertices))
axes = [np.linspace(lower[i], upper[i], 48) for i in range(3)]
grid = np.stack(np.meshgrid(*axes, indexing="ij"), axis=-1).reshape(-1, 3)
points = wp.array(grid, dtype=wp.vec3, device=device)

mesh = wp.Mesh(points=vertices, indices=faces)
by_parity = od.ray.contains_points(mesh, points).numpy()
signed = od.proximity.signed_distance_on_mesh(vertices, faces, points, sign_mode="winding")
by_winding = signed.numpy() < 0.0
print(f"inside by ray parity:     {by_parity.sum()} of {grid.shape[0]} grid points")
print(f"inside by winding number: {by_winding.sum()}")
print(f"the two disagree on {(by_parity != by_winding).sum()}")

Output

inside by ray parity:     24856 of 110592 grid points
inside by winding number: 26899
the two disagree on 2559

Modelled on: PyVista: extract cells inside a surface · trimesh: contains · libigl 702

Nearest neighbours and ball queries

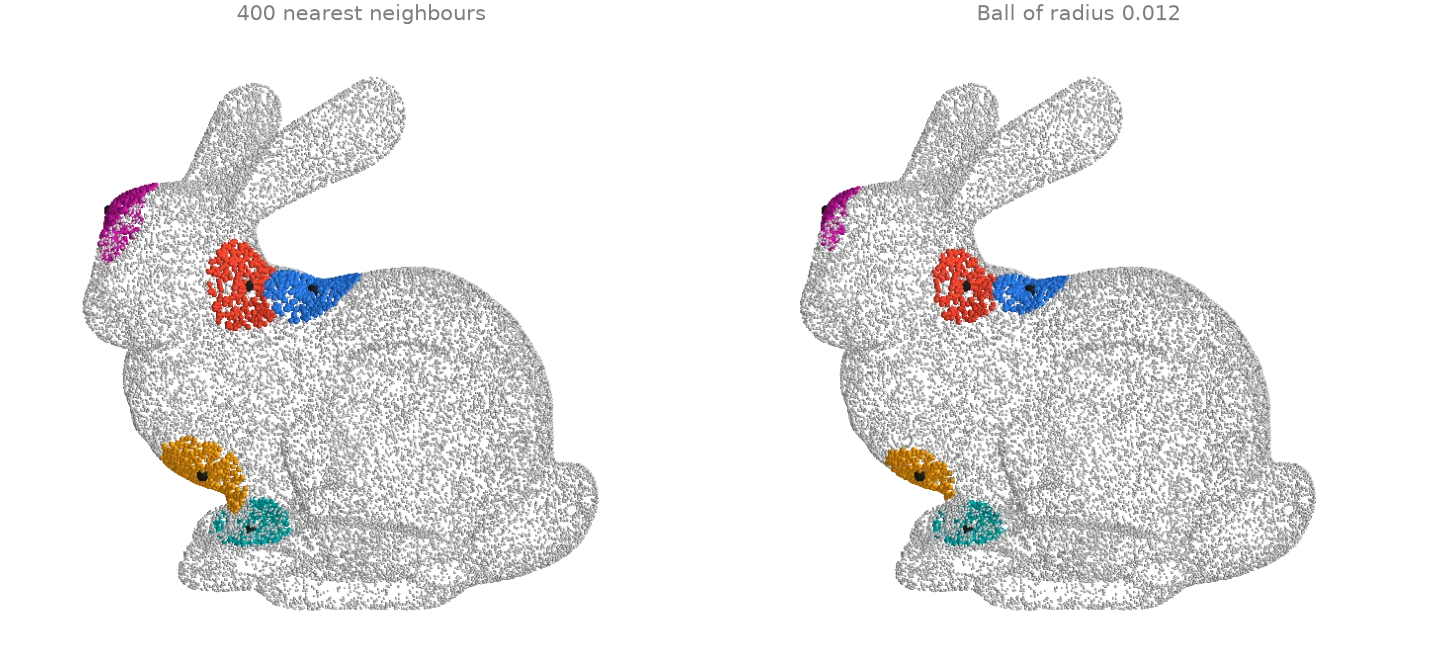

Two neighbourhood queries on a 30 000-point cloud, from five query points. query_nearest returns the k nearest points of each query (a fixed count, whose patch size varies with the local density), and query_ball returns every point within a radius (a fixed size, whose count varies). Both are exact; the spatial index is built internally, or passed in to reuse it across calls.

import warp as wp

import ordito as od
from examples import data

points = data.load_points("bunny_cloud", device)
picked = points.numpy()[[1200, 5000, 9100, 17000, 26000]]
queries = wp.array(picked, dtype=wp.vec3, device=device)

knn_index, knn_distance = od.neighbors.query_nearest(points, queries, k=400)
ball_index, ball_distance = od.neighbors.query_ball(points, queries, r=0.012)
print("k nearest: farthest neighbour at", knn_distance.numpy()[:, -1].round(4))
print("ball of radius 0.012: counts", [index.shape[0] for index in ball_index])

Output

k nearest: farthest neighbour at [0.0147 0.0151 0.0151 0.0162 0.0134]
ball of radius 0.012: counts [255, 243, 231, 245, 327]

Modelled on: Open3D: KD-tree

Chamfer and Hausdorff distances

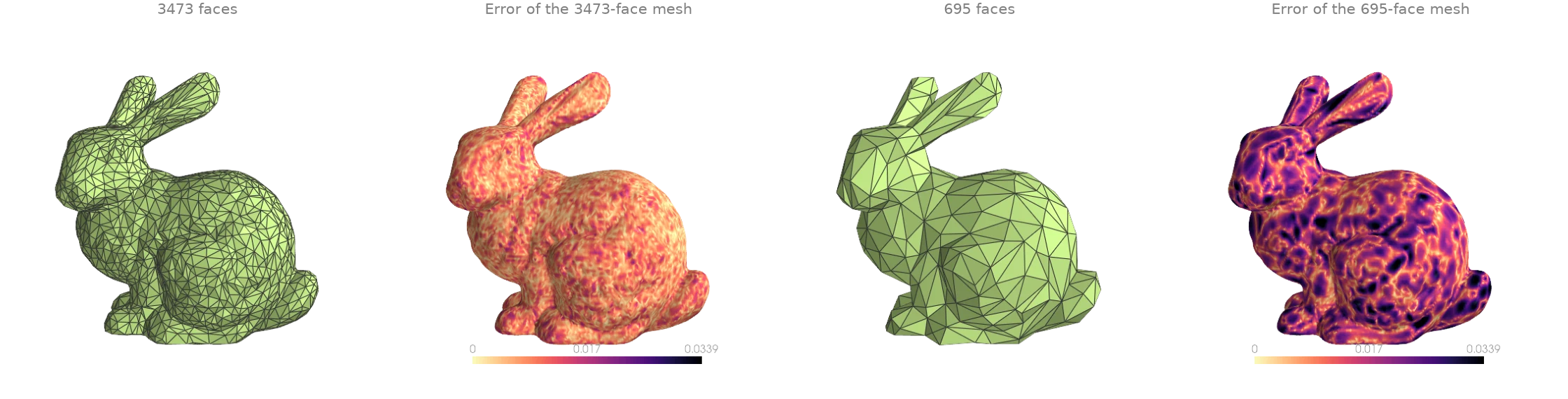

How far is a simplified mesh from the original? The bunny is decimated twice with quadric_decimate, and chamfer_points_to_mesh with point_reduction=None gives the squared distance from every original vertex to the simplified surface: an error map. The two summary numbers are the symmetric chamfer_mesh_to_mesh (a mean of squared distances, the pytorch3d convention) and hausdorff_mesh_to_mesh (the worst case).

import numpy as np

import ordito as od
from examples import data

vertices, faces = data.load("bunny", device)
results = {}
for ratio in (0.05, 0.01):
    # A scan is creased everywhere at a coarse scale: raise feature_angle to reach the target.
    coarse_vertices, coarse_faces = od.remesh.quadric_decimate(
        vertices, faces, target_ratio=ratio, feature_angle=90.0
    )
    error = od.metrics.chamfer_points_to_mesh(
        vertices, coarse_vertices, coarse_faces, point_reduction=None, single_directional=True
    )
    chamfer = od.metrics.chamfer_mesh_to_mesh(vertices, faces, coarse_vertices, coarse_faces)
    hausdorff = od.metrics.hausdorff_mesh_to_mesh(
        vertices, faces, coarse_vertices, coarse_faces
    )
    print(
        f"{coarse_faces.shape[0] // 3} faces: chamfer {chamfer:.2e}, hausdorff {hausdorff:.4f}"
    )
    results[ratio] = (coarse_vertices, coarse_faces, np.sqrt(error.numpy()))

Output

3473 faces: chamfer 1.99e-04, hausdorff 0.0009
695 faces: chamfer 7.87e-04, hausdorff 0.0021

Modelled on: PyMeshLab: Hausdorff distance · pytorch3d: chamfer loss
