Inspecting meshes

Topology, validity, components, normals, quality and bounding volumes.

Validation masks: boundaries, non-manifold elements, orientation

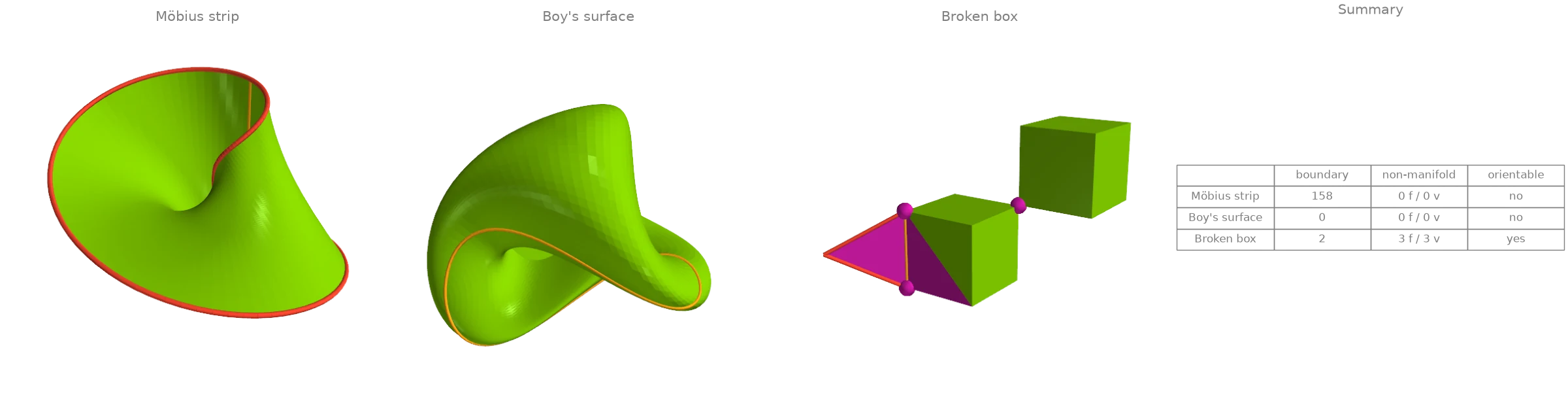

Three small meshes, each broken in a different way. The Möbius strip has one boundary loop and no consistent orientation, Boy's surface is closed but non-orientable, and the broken box has a fin on one edge (an edge with three faces) and two cubes meeting at one corner (a vertex whose faces form two fans). The per-element masks locate each defect: face_watertight_mask, edge_manifold_mask, vertex_manifold_mask and edge_winding_consistent_mask; boundary_edges lists the rims and is_orientable gives the global verdict.

import ordito as od
from examples import data

results = {}
for name in ("mobius", "boy", "broken_box"):
    vertices, faces = data.load(name, device)
    results[name] = {
        "open_faces": ~od.validation.face_watertight_mask(faces).numpy(),
        "non_manifold_faces": ~od.validation.edge_manifold_mask(faces).numpy(),
        "non_manifold_vertices": ~od.validation.vertex_manifold_mask(vertices, faces).numpy(),
        "boundary_edges": od.boundary.boundary_edges(vertices, faces).numpy(),
        "orientable": od.validation.is_orientable(faces),
        "inconsistent_edges": int(
            (~od.validation.edge_winding_consistent_mask(faces).numpy()).sum()
        ),
    }
    m = results[name]
    print(
        f"{name}: {len(m['boundary_edges'])} boundary edges, "
        f"{m['non_manifold_faces'].sum()} faces on non-manifold edges, "
        f"{m['non_manifold_vertices'].sum()} non-manifold vertices, "
        f"{m['inconsistent_edges']} edges wound the same way by both faces, "
        f"orientable: {m['orientable']}"
    )

Output

mobius: 158 boundary edges, 0 faces on non-manifold edges, 0 non-manifold vertices, 79 edges wound the same way by both faces, orientable: False
boy: 0 boundary edges, 0 faces on non-manifold edges, 0 non-manifold vertices, 79 edges wound the same way by both faces, orientable: False
broken_box: 2 boundary edges, 3 faces on non-manifold edges, 3 non-manifold vertices, 0 edges wound the same way by both faces, orientable: True

Magenta faces touch an edge used by three faces, magenta dots are non-manifold vertices, red edges are boundary edges and orange edges are traversed in the same direction by both of their faces (where the orientation flips). Both ends of the fin's edge are reported as non-manifold vertices along with the shared corner.

Modelled on: Open3D: mesh properties · PyVista: mesh quality

Bounding boxes, principal axes and a fitted plane

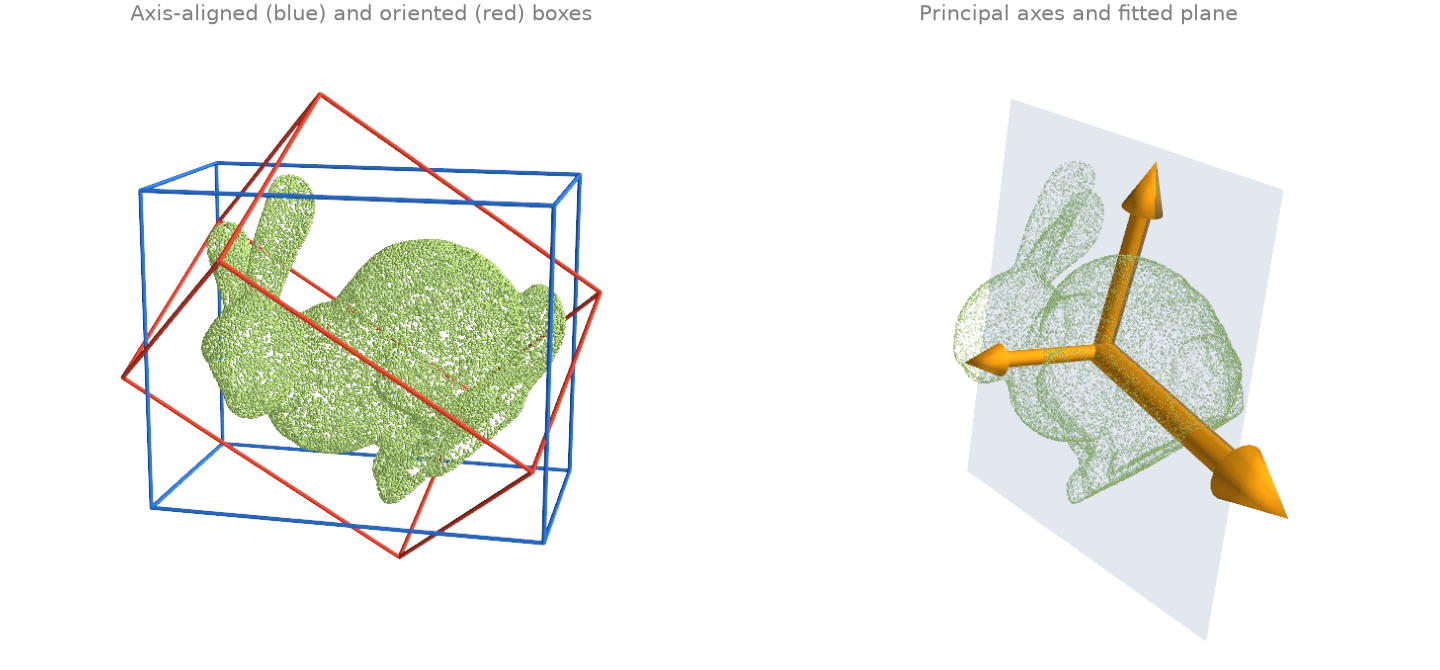

A bunny point cloud turned about a skew axis. The axis-aligned box from aabb grows with the tilt; the oriented box from oriented_bounding_box searches orientations for the smallest volume and does not. principal_axes gives the covariance frame (drawn at three times the standard deviation along each axis), and fit_plane the least-squares plane, whose normal is the least spread axis.

import numpy as np

import ordito as od
from examples import data

points = data.load_points("tilted_bunny_cloud", device)

aabb_lower, aabb_upper = od.bounds.aabb(points)
rotation, obb_lower, obb_upper = od.bounds.oriented_bounding_box(points)
axes, scatter, centroid = od.points.principal_axes(points)  # scatter = n - 1 times variance
plane_normal, plane_origin = od.points.fit_plane(points)

aabb_volume = np.prod(np.array(aabb_upper) - np.array(aabb_lower))
obb_volume = np.prod(np.array(obb_upper) - np.array(obb_lower))
print(f"axis-aligned box volume {aabb_volume:.3e}, oriented box volume {obb_volume:.3e}")
deviations = np.sqrt(np.array(scatter) / (points.size - 1))
print(f"standard deviations along the principal axes {deviations}")

Output

axis-aligned box volume 3.221e-03, oriented box volume 2.396e-03
standard deviations along the principal axes [0.04859596 0.03405995 0.02667325]

Modelled on: Open3D: bounding volumes · trimesh: examples · libigl 910

Connected components: label, split, remove debris

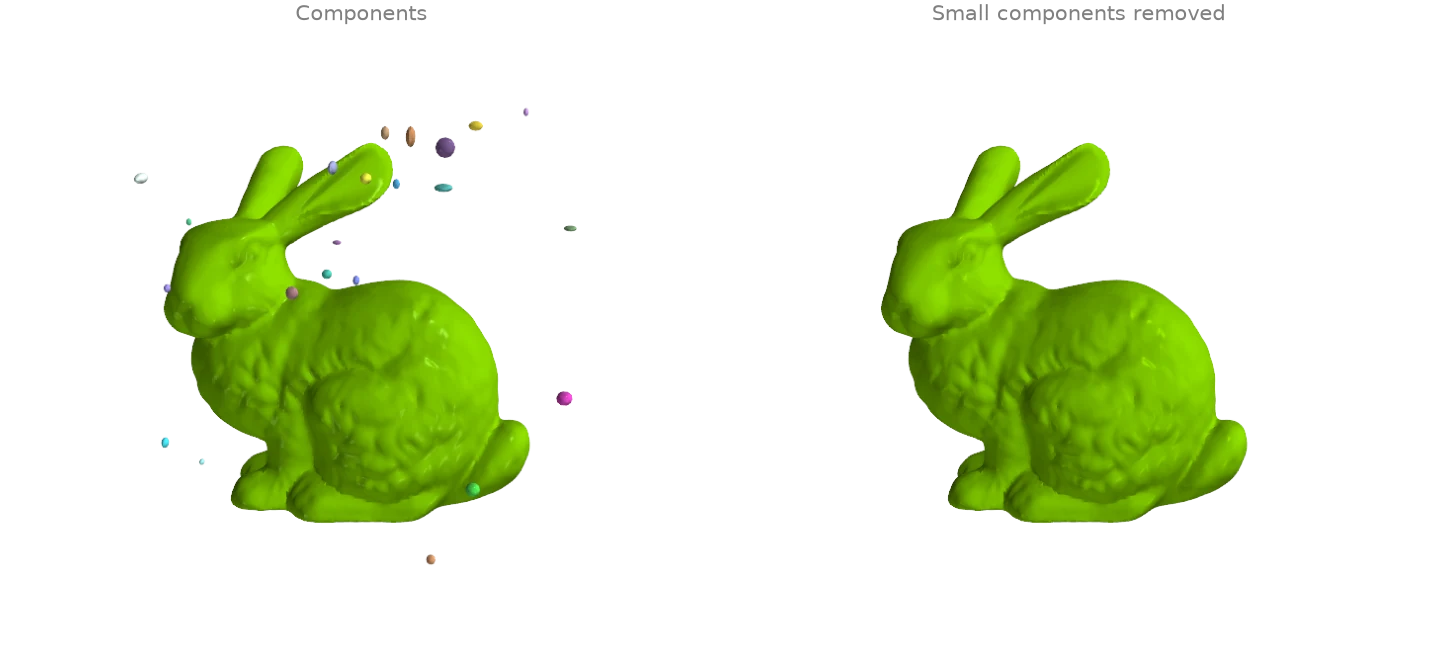

The bunny scan is surrounded by small floating blobs, the debris a scanner leaves behind. face_connected_component_labels gives every face the label of its edge-connected component, split cuts the mesh into one mesh per component, and remove_small_components drops every component below a face count (or area, or diameter) in one call.

import numpy as np

import ordito as od
from examples import data

vertices, faces = data.load("bunny_debris", device)
labels = od.adjacency.face_connected_component_labels(faces)
parts = od.combine.split(vertices, faces)
sizes = sorted((part_faces.shape[0] // 3 for _, part_faces in parts), reverse=True)
print(f"{len(parts)} components; the largest has {sizes[0]} faces, the next {sizes[1]}")

clean_vertices, clean_faces = od.repair.remove_small_components(vertices, faces, min_faces=1000)
print(f"kept {clean_faces.shape[0] // 3} of {faces.shape[0] // 3} faces")

Output

41 components; the largest has 69451 faces, the next 80
kept 69451 of 72651 faces

Modelled on: Open3D: connected components · PyVista: connectivity · PyMeshLab: filters

Feature edges: creases, convexity and boundaries

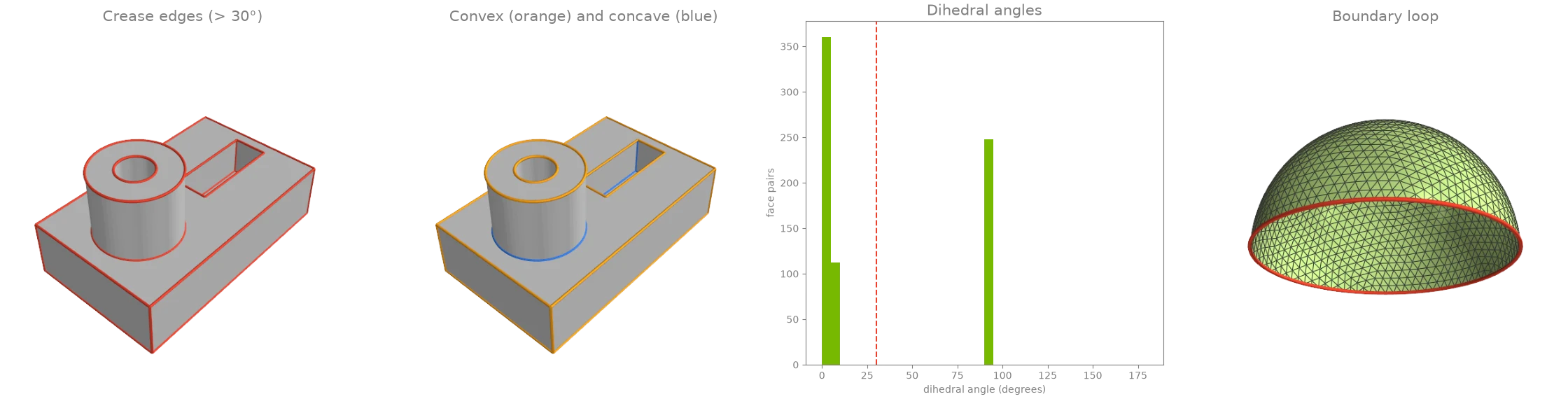

face_adjacency pairs the faces that share an edge; face_adjacency_angles measures the dihedral angle across each pair and face_adjacency_convex says which way it folds. crease_edges keeps the edges that bend by more than a threshold angle in one call, and boundary_loops orders the edges used by a single face into closed rims.

import numpy as np

import ordito as od
from examples import data

vertices, faces = data.load("cad_part", device)
adjacency, shared_edges = od.adjacency.face_adjacency(faces, return_edges=True)
angles = od.adjacency.face_adjacency_angles(vertices, faces, adjacency)
convex = od.adjacency.face_adjacency_convex(vertices, faces, adjacency, shared_edges)
creases = od.seams.crease_edges(vertices, faces, angle=30.0)
sharp = angles.numpy() > np.radians(30.0)
print(
    f"{creases.shape[0]} crease edges: {(sharp & convex.numpy()).sum()} convex, "
    f"{(sharp & ~convex.numpy()).sum()} concave"
)

rim_vertices, rim_faces = data.load("hemisphere", device)
loops = od.boundary.boundary_loops(rim_vertices, rim_faces)
print(f"hemisphere: {len(loops)} boundary loop of {loops[0].shape[0]} vertices")

Output

248 crease edges: 176 convex, 72 concave
hemisphere: 1 boundary loop of 96 vertices

Modelled on: PyVista: extract edges · trimesh: examples · PyMeshLab: filters

Triangle quality

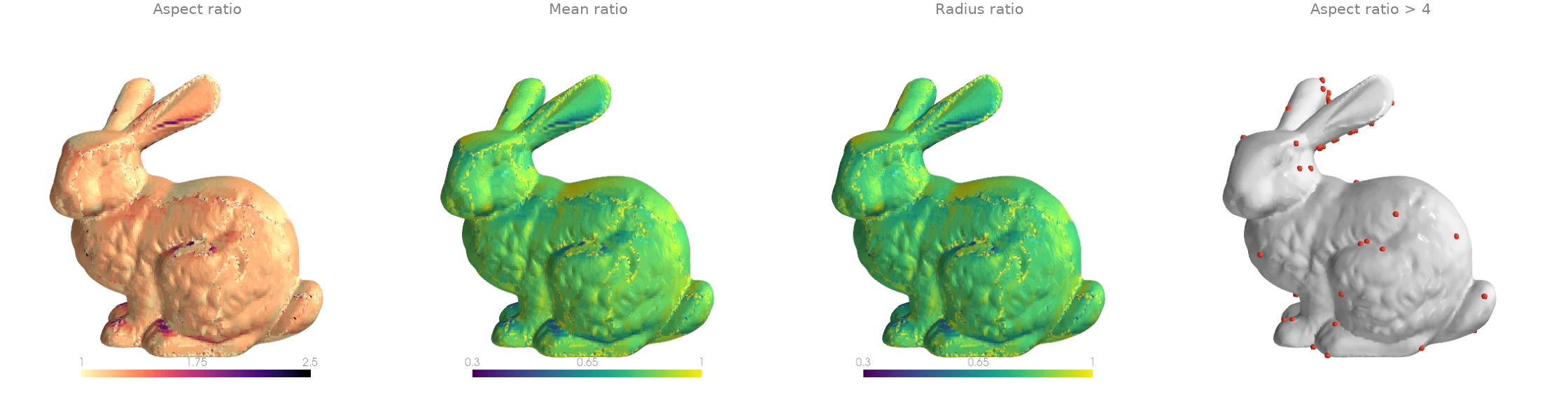

face_quality scores the shape of every triangle of the bunny scan. The aspect ratio (circumradius over twice the inradius) is 1 for an equilateral triangle and grows without bound for a sliver; the mean ratio and the radius ratio run the other way, from 0 for a degenerate triangle to 1. The scan is mostly well shaped, with a scatter of slivers where the scanner's patches were stitched.

import numpy as np

import ordito as od
from examples import data

vertices, faces = data.load("bunny", device)
aspect = od.triangles.face_quality(vertices, faces, "aspect_ratio").numpy()
mean_ratio = od.triangles.face_quality(vertices, faces, "mean_ratio").numpy()
radius_ratio = od.triangles.face_quality(vertices, faces, "radius_ratio").numpy()
print(f"aspect ratio: median {np.median(aspect):.3f}, worst {aspect.max():.1f}")
print(f"{(aspect > 4).sum()} of {aspect.size} faces have an aspect ratio above 4")

Output

aspect ratio: median 1.231, worst 1666.7
85 of 69451 faces have an aspect ratio above 4

Modelled on: PyVista: mesh quality · PyMeshLab: filters · libigl 701

Normals: per face, per vertex, per corner

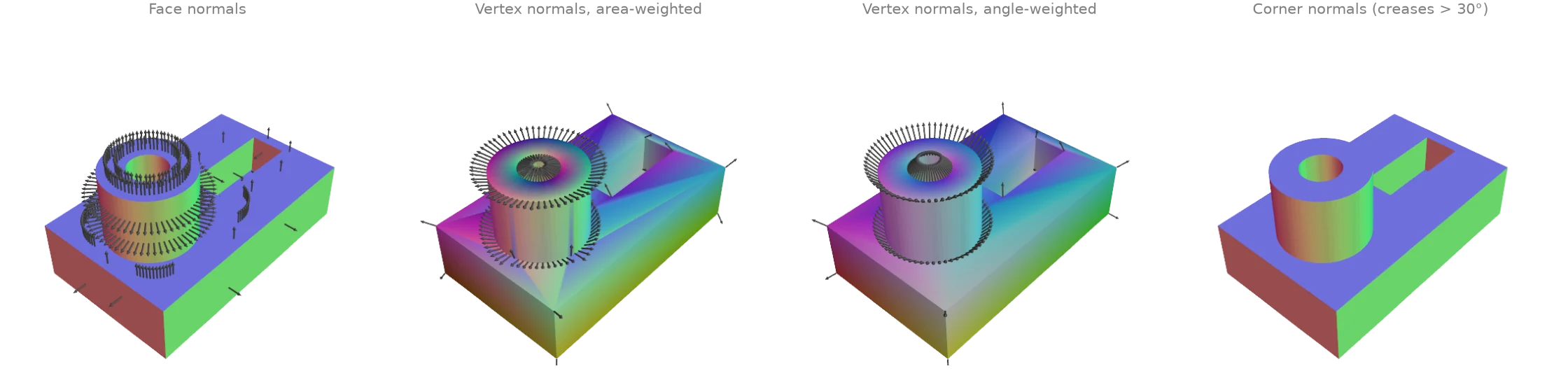

Four ways to put normals on a machined part, coloured by direction (red, green, blue for the x, y, z components). face_normals_and_areas gives one flat normal per face. vertex_normals averages them per vertex, weighted by face area or by the corner angle: area weighting leans towards the long triangles of a flat side, angle weighting does not depend on how a flat side was triangulated. Both smear a crease. corner_normals keeps one normal per face corner and averages only over faces not separated by a crease_edges edge, which is what a renderer with hard edges needs.

import numpy as np

import ordito as od
from examples import data

vertices, faces = data.load("cad_part", device)
face_normals, _ = od.triangles.face_normals_and_areas(vertices, faces)
area_weighted = od.vertices.vertex_normals(vertices, faces, weighting="area")
angle_weighted = od.vertices.vertex_normals(vertices, faces, weighting="angle")
creases = od.seams.crease_edges(vertices, faces, angle=30.0)
corner = od.triangles.corner_normals(vertices, faces, creases)  # (n_faces, 3) normals

gap = np.degrees(
    np.arccos(np.clip((area_weighted.numpy() * angle_weighted.numpy()).sum(1), -1, 1))
)
print(f"area- and angle-weighted vertex normals differ by up to {gap.max():.1f} degrees")

Output

area- and angle-weighted vertex normals differ by up to 41.9 degrees

Modelled on: libigl 201 · Open3D: vertex normals · PyVista: compute normals

Homology generators: handles and tunnels

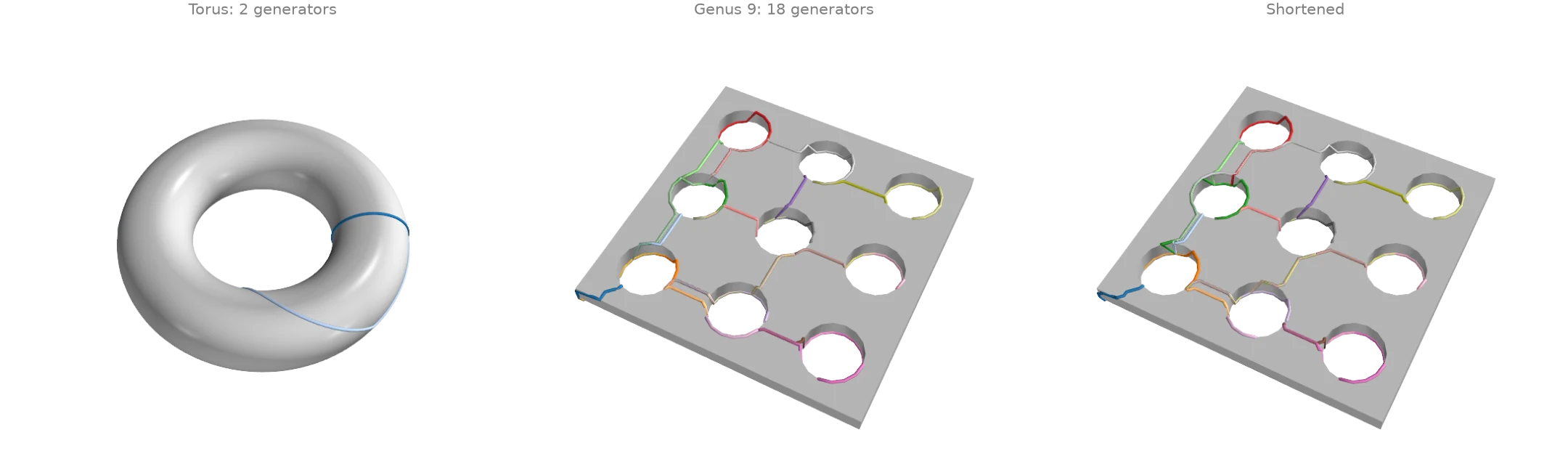

homology_generators returns a basis of the loops that cannot be shrunk to a point on a closed surface: two per handle, so a torus has 2 and the slab with nine tunnels has 18. The basis comes from a tree-cotree construction, so its loops follow the spanning trees and wander; shorten_loop pulls each one tighter along the mesh edges without changing its homotopy class. A basis loop that winds around several tunnels at once stays long: shortening cannot turn it into a loop around one tunnel, because that is a different class.

import numpy as np
import warp as wp

import ordito as od
from examples import data

torus_vertices, torus_faces = data.load("torus", device)
torus_loops = od.homology.homology_generators(torus_vertices, torus_faces)
print(f"torus: {len(torus_loops)} generators (genus {len(torus_loops) // 2})")

vertices, faces = data.load("handles", device)
loops = od.homology.homology_generators(vertices, faces)
short_loops, sweeps = od.geodesic_walk.shorten_loop(vertices, faces, loops, max_iter=500)
print(f"slab: {len(loops)} generators (genus {len(loops) // 2})")

def length(loop: wp.array[wp.int32]) -> float:  # closed polyline length
    points = vertices.numpy()[loop.numpy()]
    return np.linalg.norm(points - np.roll(points, 1, axis=0), axis=1).sum()

before, after = sum(map(length, loops)), sum(map(length, short_loops))
print(f"total loop length {before:.1f} before shortening, {after:.1f} after ({sweeps} sweeps)")

Output

torus: 2 generators (genus 1)
slab: 18 generators (genus 9)
total loop length 381.7 before shortening, 357.4 after (10 sweeps)

Modelled on: MeshLib: tunnel detection

Self-intersections and mesh-mesh collisions

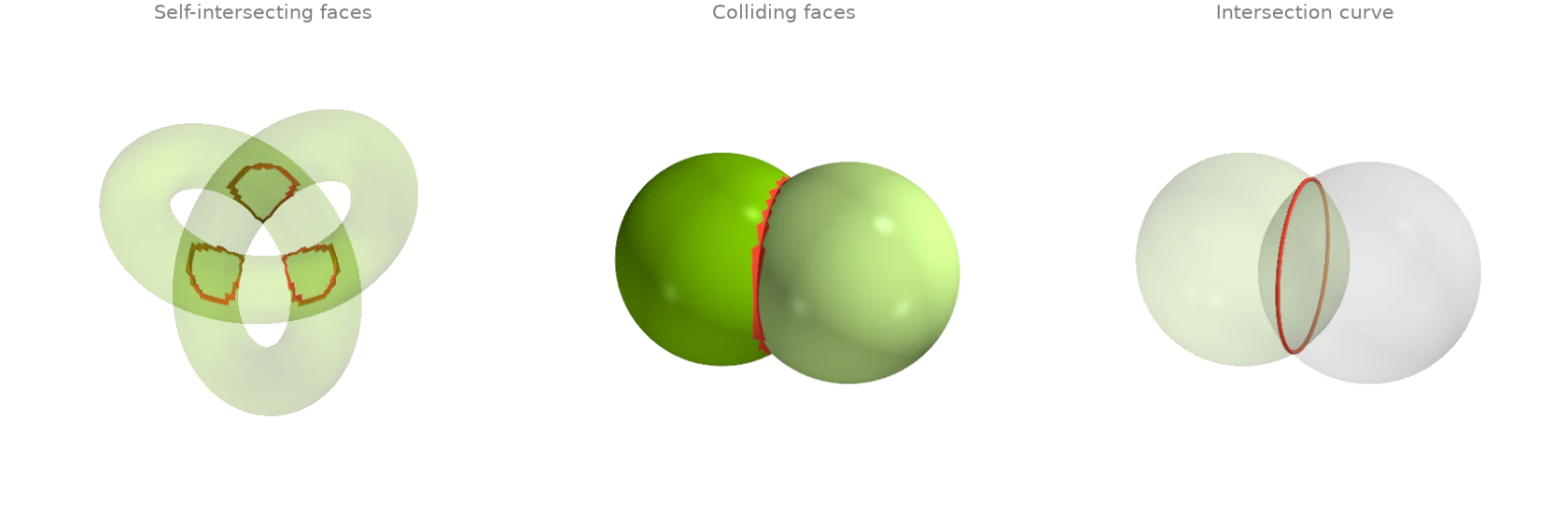

A trefoil tube too thick for its path passes through itself where the strands cross; face_self_intersecting_mask flags every face that crosses another face of the same mesh. For two separate meshes, collision_masks flags the faces of each that touch the other, and mesh_with_mesh returns the intersection curve as segments. The two overlapping spheres come out of one input buffer through split.

import ordito as od
from examples import data

vertices, faces = data.load("fat_knot", device)
crossing = od.validation.face_self_intersecting_mask(vertices, faces)
print(f"knot: {crossing.numpy().sum()} of {faces.shape[0] // 3} faces cross another face")

(vertices_a, faces_a), (vertices_b, faces_b) = od.combine.split(
    *data.load("two_spheres", device)
)
hit_a, hit_b = od.intersection.collision_masks(vertices_a, faces_a, vertices_b, faces_b)
curve = od.intersection.mesh_with_mesh(vertices_a, faces_a, vertices_b, faces_b)
print(f"spheres: {hit_a.numpy().sum()} + {hit_b.numpy().sum()} colliding faces")
print(f"intersection curve: {curve.shape[0]} segments")

Output

knot: 580 of 25600 faces cross another face
spheres: 148 + 148 colliding faces
intersection curve: 148 segments

Modelled on: MeshLib: mesh collision · libigl 903 · PyVista: collision
