Smoothing and fairing

Denoising filters, shrink-free smoothing, curvature flow, and local fairing of a selected region.

Denoising a scan: four smoothing filters

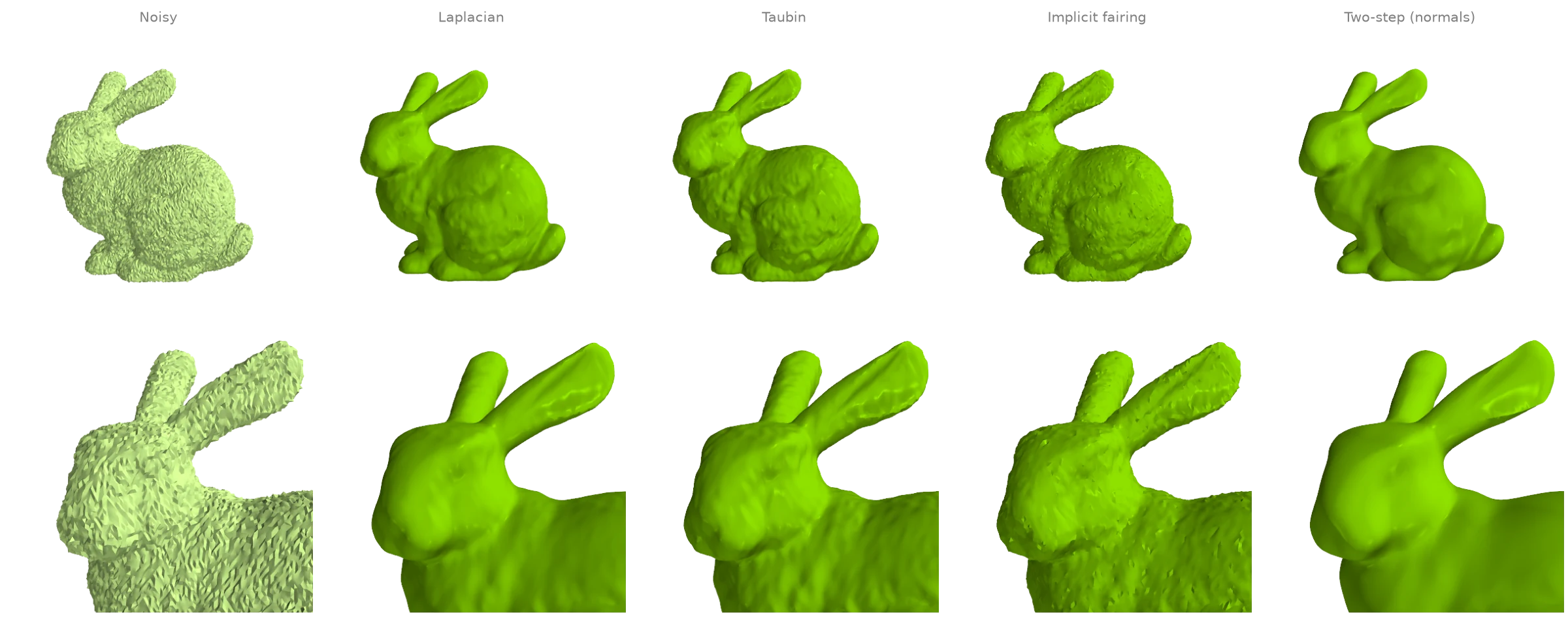

The bunny with Gaussian noise along its normals, cleaned four ways:

filter_laplacian moves every vertex towards the mean of its neighbours (here rescaled after each pass to keep the volume); a few passes remove noise, more start to erase detail;
filter_taubin alternates a shrinking and an inflating step, which removes noise with far less shrinkage;
filter_implicit_fairing takes one implicit step of cotangent curvature flow;
filter_two_step first smooths the face normals with filter_normals and then moves the vertices to fit them, which keeps sharp features.

The printed number is the mean distance of each result's vertices from the clean scan.

import numpy as np

import ordito as od
from examples import data

vertices, faces = data.load("noisy_bunny", device)
smoothed = {
    "Laplacian": od.smoothing.filter_laplacian(vertices, faces, iterations=5),
    "Taubin": od.smoothing.filter_taubin(vertices, faces, iterations=20),
    "Implicit fairing": od.smoothing.filter_implicit_fairing(
        vertices, faces, lamb=1e-6, iterations=1
    ),
    "Two-step (normals)": od.smoothing.filter_two_step(vertices, faces),
}

clean = data.load("bunny", device)[0].numpy()
print(f"{'noisy':>18}: {np.linalg.norm(vertices.numpy() - clean, axis=1).mean():.2e}")
for name, result in smoothed.items():
    print(f"{name:>18}: {np.linalg.norm(result.numpy() - clean, axis=1).mean():.2e}")

Output

             noisy: 3.50e-04
         Laplacian: 3.03e-04
            Taubin: 2.24e-04
  Implicit fairing: 2.08e-04
Two-step (normals): 2.40e-04

Modelled on: Open3D: mesh filtering · PyVista: smoothing · MeshLib: denoise · PyMeshLab: smoothing · pytorch3d: taubin_smoothing

Smoothing without shrinking

Many passes of plain Laplacian smoothing pull every vertex towards its neighbours' centroid, and the whole surface shrinks: thin parts such as the ears go first. Three filters smooth as hard without losing volume:

filter_humphrey follows each Laplacian step by pushing the vertices part of the way back towards their original positions (HC filtering);
relax_keep_volume subtracts from each vertex's move the average move of its neighbourhood, so a local drift inwards cancels while the noise is still removed;
filter_mut_dif_laplacian adapts the diffusion speed per vertex and inflates along the normals to restore the volume.

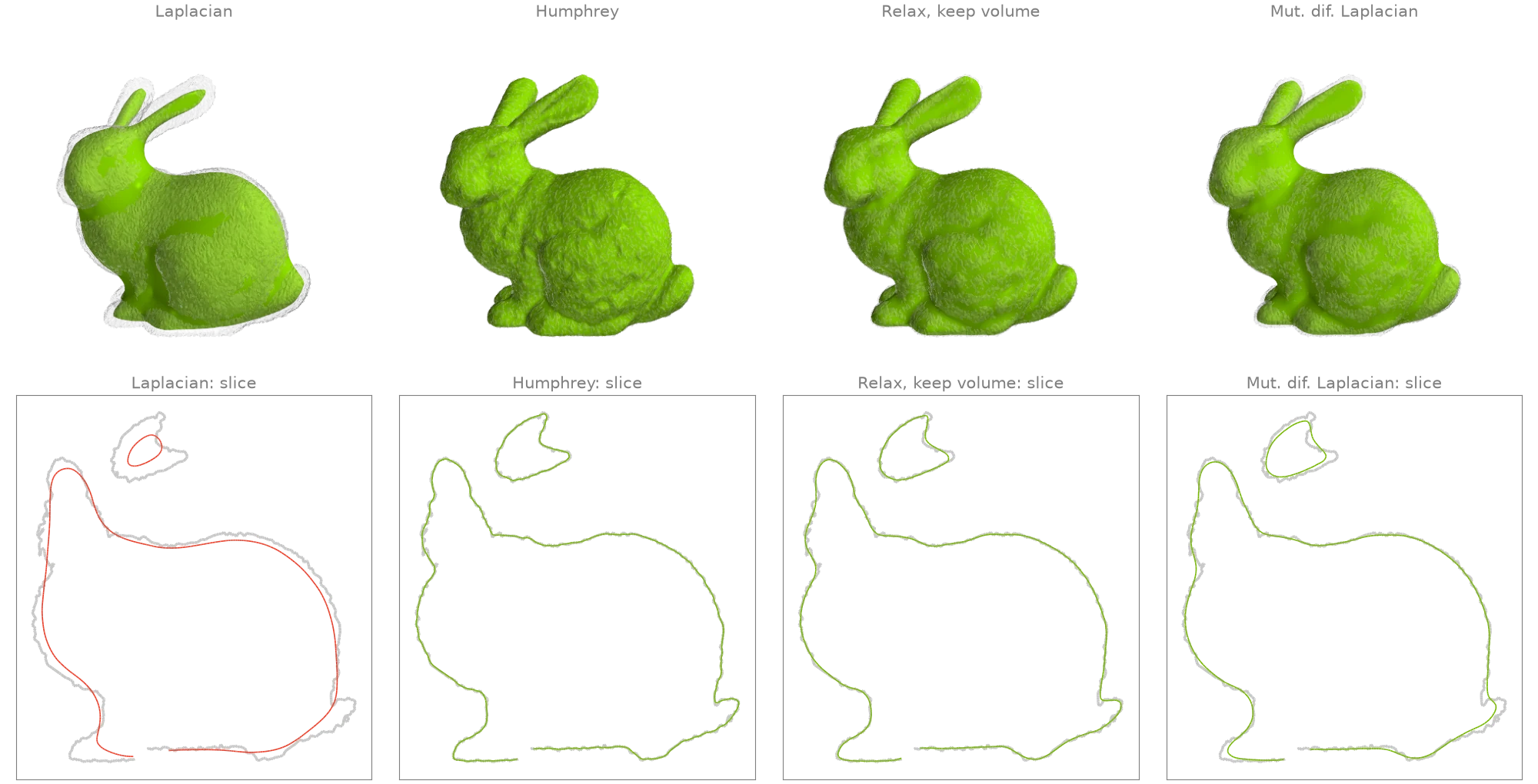

The lower row shows a slice through the head and body of each result (colour) over the noisy input (grey). Volumes are from volume.

import ordito as od
from examples import data

vertices, faces = data.load("noisy_bunny", device)
passes = 200
smoothed = {
    "Laplacian": od.smoothing.filter_laplacian(
        vertices, faces, iterations=passes, volume_constraint=False
    ),
    "Humphrey": od.smoothing.filter_humphrey(vertices, faces, iterations=passes),
    "Relax, keep volume": od.smoothing.relax_keep_volume(vertices, faces, iterations=passes),
    "Mut. dif. Laplacian": od.smoothing.filter_mut_dif_laplacian(
        vertices, faces, iterations=passes
    ),
}
before = od.measures.volume(vertices, faces)
for name, result in smoothed.items():
    print(f"{name:>19}: volume x {od.measures.volume(result, faces) / before:.3f}")

Output

          Laplacian: volume x 0.904
           Humphrey: volume x 1.003
 Relax, keep volume: volume x 1.005
Mut. dif. Laplacian: volume x 1.000

Modelled on: Open3D: Taubin vs Laplacian · PyMeshLab: smoothing

Mean-curvature flow, plain and conformalized

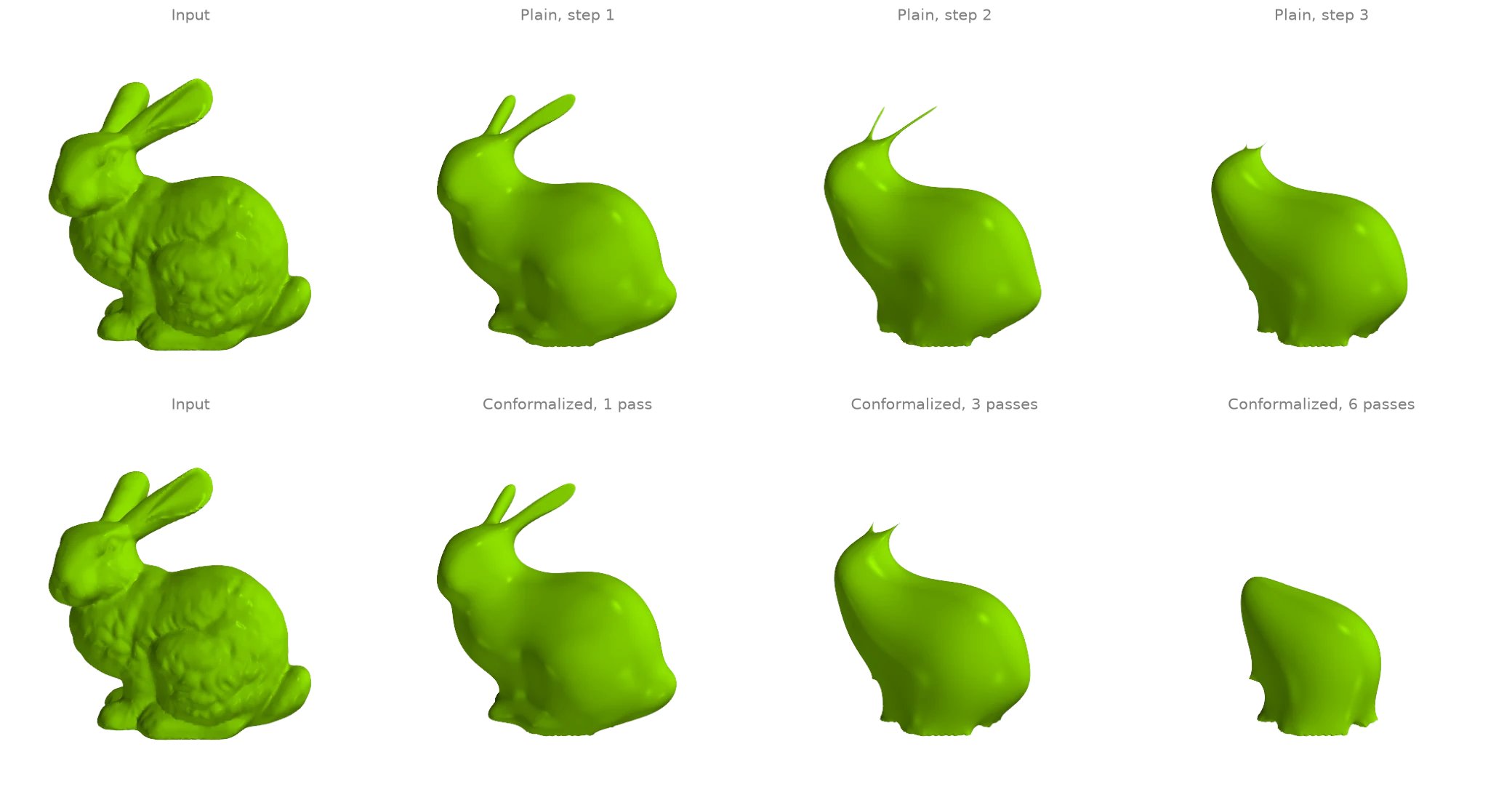

Each pass of filter_implicit_fairing moves every vertex along its mean-curvature normal by one implicit (backward Euler) step of (M - lamb L) V' = M V. Rebuilding the cotangent Laplacian L from the current shape every pass is mean-curvature flow: the fur-like bumps vanish first, then the thin ears shrink fastest and pinch. With conformalized=True the stiffness stays the input's and only the mass follows the surface (Kazhdan, Solomon and Ben-Chen 2012): each pass solves a system as well conditioned as the first, so a long flow stays cheap. The rims of the scan's holes in the base are held fixed. Surface areas come from face_normals_and_areas.

import ordito as od
from examples import data

vertices, faces = data.load("bunny", device)

# Plain flow: each call rebuilds the Laplacian from the shape it is given.
plain = [vertices]
for _ in range(3):
    plain.append(
        od.smoothing.filter_implicit_fairing(plain[-1], faces, lamb=1e-4, iterations=1)
    )

# Conformalized flow: one call, the input's Laplacian kept for every pass.
conformal = [vertices] + [
    od.smoothing.filter_implicit_fairing(
        vertices, faces, lamb=1e-4, iterations=passes, conformalized=True
    )
    for passes in (1, 3, 6)
]
for name, frames in (("plain", plain), ("conformalized", conformal)):
    areas = [od.triangles.face_normals_and_areas(v, faces)[1].numpy() for v in frames]
    print(
        f"{name:>13}: area {' -> '.join(f'{a.sum():.4f}' for a in areas)}, "
        f"smallest triangle {areas[-1].min() / areas[0].min():.2g} of the input's"
    )

Output

        plain: area 0.0571 -> 0.0425 -> 0.0347 -> 0.0295, smallest triangle 0 of the input's
conformalized: area 0.0571 -> 0.0425 -> 0.0301 -> 0.0191, smallest triangle 1.1e-08 of the input's

Neither variant keeps the triangles well shaped: on the bunny the ears still shrink to slivers under the conformalized flow, and both outputs end with triangles a tiny fraction of the input's. What differs is the linear system. The plain flow rebuilds its cotangent weights from those slivers, so each further pass needs far more solver iterations; the conformalized flow keeps the input's weights, so it does not. Pinching off thin parts is a property of mean-curvature flow itself. The conformalized flow keeps one stiffness for the whole call, so it is run as one call with several passes rather than as repeated calls.

Modelled on: libigl 205

Removing spikes and sharpening detail

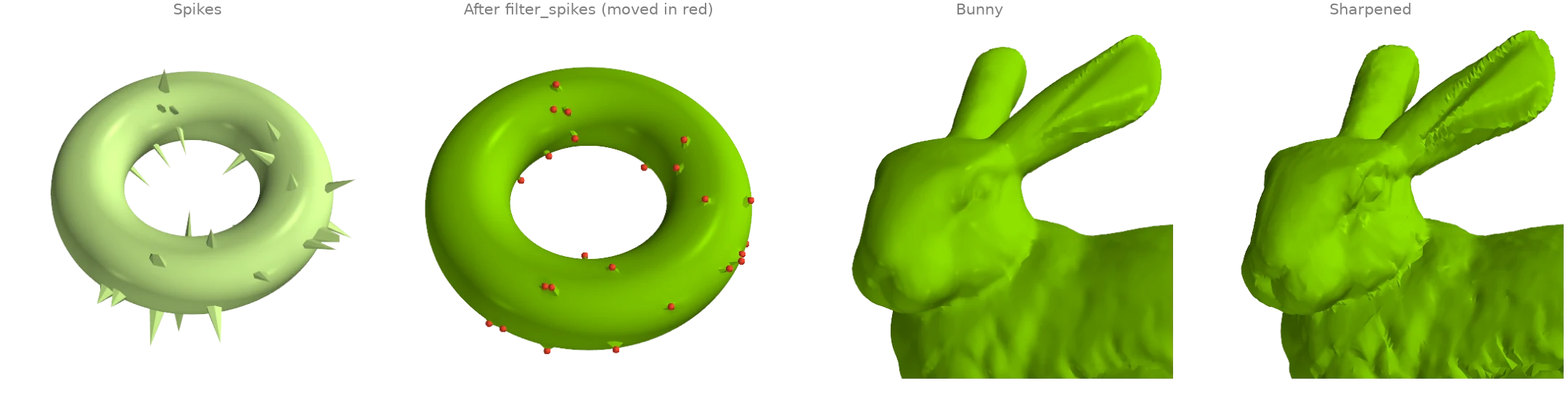

Two targeted filters. filter_spikes finds vertices whose corner angles add up to much less than a full turn (needles, a common scan artifact), moves only those onto the average of their neighbours, and repeats until none is left: everything else stays exactly where it was. filter_sharpen is unsharp masking for meshes: it adds back a multiple of the difference between the surface and a smoothed copy of it, which exaggerates the bunny's fur-like detail.

import math

import numpy as np

import ordito as od
from examples import data

vertices, faces = data.load("spiky_torus", device)
despiked, moves = od.smoothing.filter_spikes(
    vertices, faces, min_angle_sum=math.pi, return_count=True
)
moved = np.linalg.norm(despiked.numpy() - vertices.numpy(), axis=1) > 0
print(f"spike filter: {moves} moves, {moved.sum()} of {moved.size} vertices changed")

bunny, bunny_faces = data.load("bunny", device)
sharpened = od.smoothing.filter_sharpen(bunny, bunny_faces, weight=1.0, iterations=5)

Output

spike filter: 40 moves, 40 of 6144 vertices changed

Modelled on: MeshLib: remove spikes · PyMeshLab: unsharp mask

Fairing a region and smoothing its rim

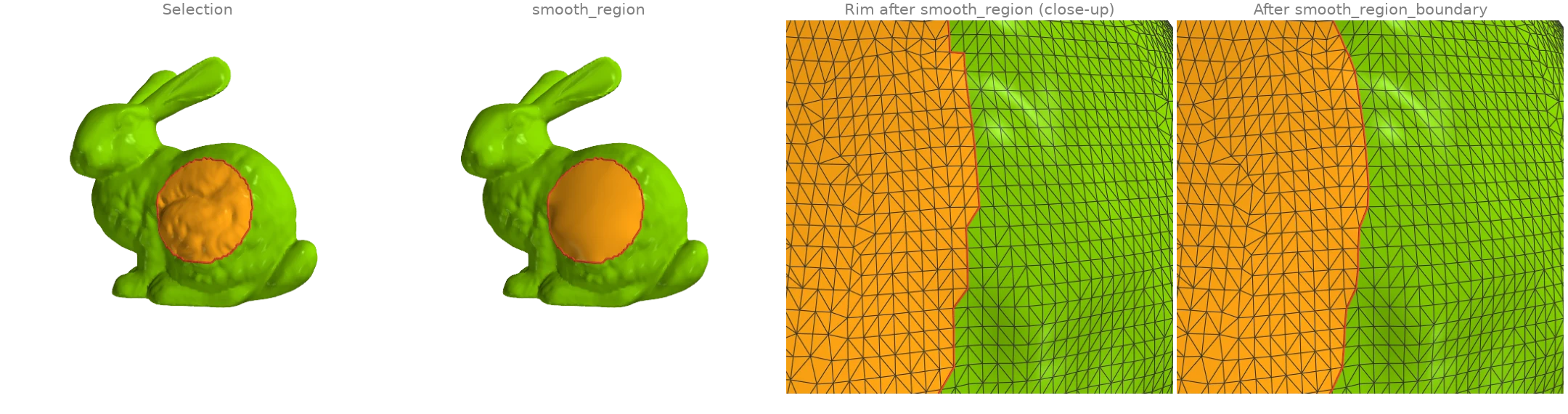

A patch of the bunny's flank is selected (the vertices near a point, grown by two rings with expand_vertex_mask). smooth_region then repositions only the selected vertices so that the surface is as smooth as possible including across the rim: the bumps vanish and the patch blends tangentially into the fixed surface around it. The rim of a selection follows triangle edges and zigzags; smooth_region_boundary slides the vertices on it along the surface onto a smooth curve without changing the selection. The rim is drawn from region_boundary_edges.

import numpy as np
import warp as wp

import ordito as od
from examples import data

vertices, faces = data.load("bunny", device)
points = vertices.numpy()
near = np.linalg.norm(points - points[5088], axis=1) < 0.03  # a point on the flank
selected = od.selection.expand_vertex_mask(faces, wp.array(near, device=device), hops=2)
faired = od.smoothing.smooth_region(vertices, faces, selected)

# The face region the selection covers, and its rim before and after smoothing it.
region = wp.array(np.all(selected.numpy()[faces.numpy().reshape(-1, 3)], axis=1), device=device)
smooth_rim = od.smoothing.smooth_region_boundary(faired, faces, region, iterations=8)
rim = od.selection.region_boundary_edges(faces, region)
moved = np.linalg.norm(faired.numpy() - points, axis=1)
print(f"{selected.numpy().sum()} free vertices, largest move {moved.max():.4f}")
print(f"{rim.shape[0]} rim edges")

Output

2261 free vertices, largest move 0.0053
160 rim edges

Modelled on: libigl 401: surface fairing · MeshLib: smoothRegionBoundary

Relaxation: even triangle areas and a local surface fit

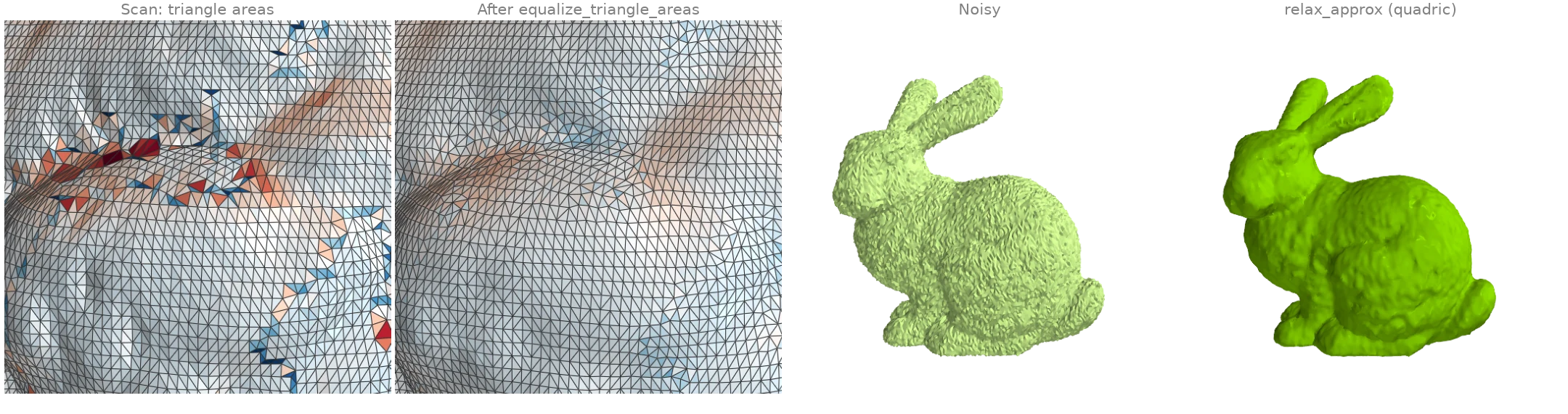

Two filters that move vertices for reasons other than diffusion. equalize_triangle_areas moves each vertex to the point that minimizes the summed squared areas of its triangles, which evens out the scan's triangle sizes without changing its connectivity (colour: each triangle's area over the mean on a log scale from 1/3 to 3, blue smaller and red larger, from face_normals_and_areas). relax_approx fits a quadric to every vertex's geodesic neighbourhood and moves the vertex onto it, so noise smaller than the neighbourhood is removed in a few passes while the curvature of the shape is kept; its radius here is two mean edge lengths from edges_unique_length.

import numpy as np

import ordito as od
from examples import data

vertices, faces = data.load("bunny", device)
even = od.smoothing.equalize_triangle_areas(vertices, faces, iterations=5)
for name, positions in (("scan", vertices), ("equalized", even)):
    _, areas = od.triangles.face_normals_and_areas(positions, faces)
    spread = areas.numpy().std() / areas.numpy().mean()
    print(f"{name:>9}: triangle area spread (std / mean) {spread:.3f}")

noisy, _ = data.load("noisy_bunny", device)
edge = od.edges.edges_unique_length(vertices, faces).numpy().mean()
relaxed = od.smoothing.relax_approx(noisy, faces, 2 * edge, iterations=3, fit="quadric")
clean = vertices.numpy()
for name, positions in (("noisy", noisy), ("relaxed", relaxed)):
    error = np.linalg.norm(positions.numpy() - clean, axis=1).mean()
    print(f"{name:>9}: mean distance from the clean scan {error:.2e}")

Output

     scan: triangle area spread (std / mean) 0.249
equalized: triangle area spread (std / mean) 0.147
    noisy: mean distance from the clean scan 3.50e-04
  relaxed: mean distance from the clean scan 1.82e-04

Modelled on: MeshLib: relax · PyMeshLab: smoothing
